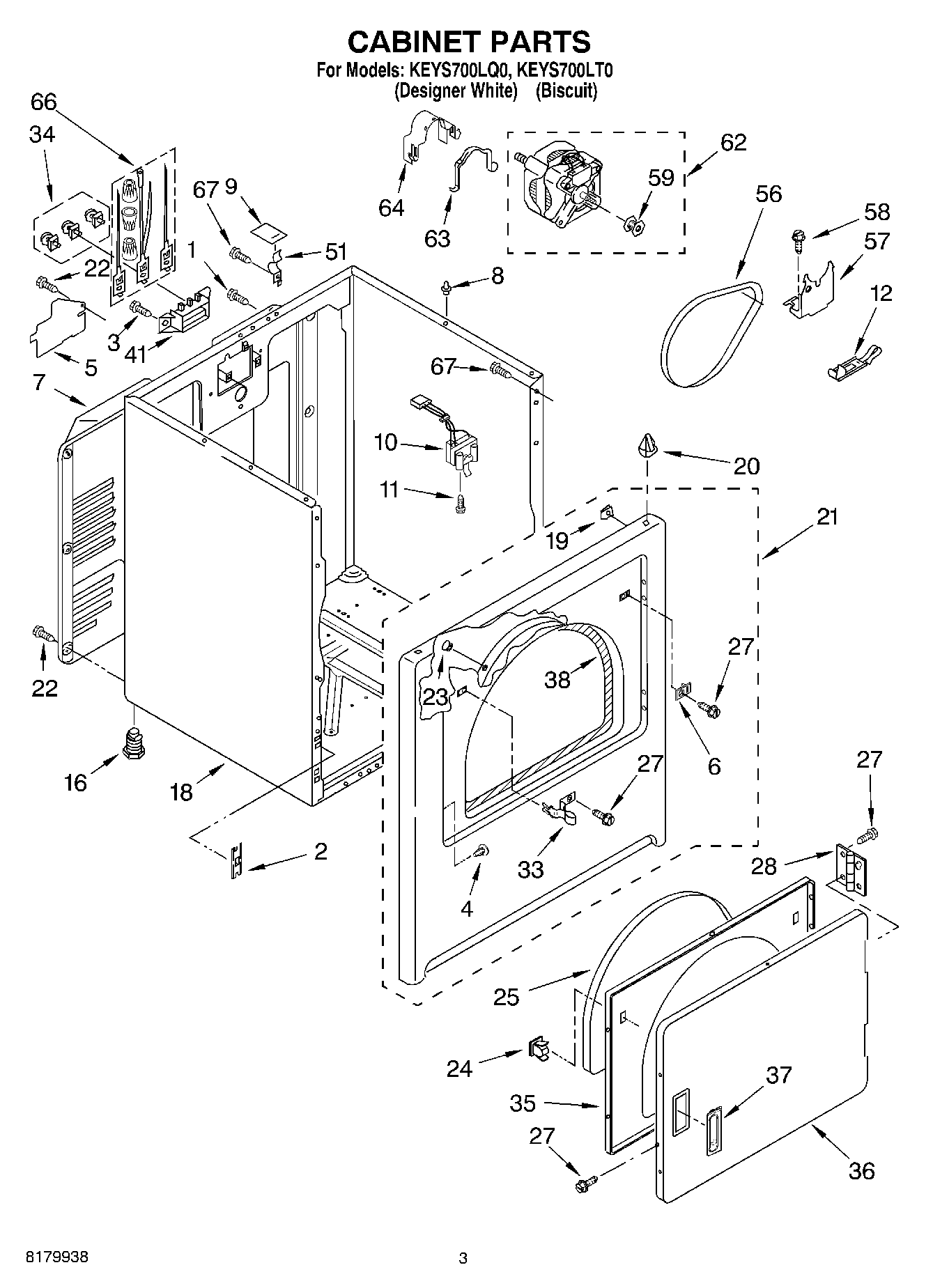

KEYS700LQ0 02 – SECTION

KEYS700LQ0 02 – SECTION

Written by

in

KEYS700LQ0 02 – SECTION

Products

PositionProduct
1W10850756 Whirlpool Screw
2W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
3WP308685 Whirlpool Microwave Screw
4WP3404413 Whirlpool Plug
4Plug, Hinge Hole (4) (Biscuit)
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
6Plug, Strike Hole (Biscuit)
7280043 Whirlpool Rear Panel
8Locator, Top
918849 Whirlpool Pad
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP691366 Whirlpool Dryer Idler Pulley Assembly
1649621 Whirlpool Leveling Feet
18Cabinet (Biscuit)
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front (Biscuit)
21Panel, Front
22WP693995 Whirlpool Screw
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25SEAL-DOOR DRYER
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
33W11429589 Whirlpool Strike
34279393 Whirlpool Terminal Block Screw and Nut Kit
35WP3402341 Whirlpool Door
36Door, Front (Biscuit)
36W10861227 Whirlpool Door Assembly
37Handle, Door (Biscuit)
37Handle, Door
38W11035878 Whirlpool Bearing and Seal
41WP3397659 Whirlpool Terminal Block
51WP8066217 Whirlpool Hinge
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3404162 Whirlpool Clamp
66279318 Whirlpool Terminal
67SCREW
