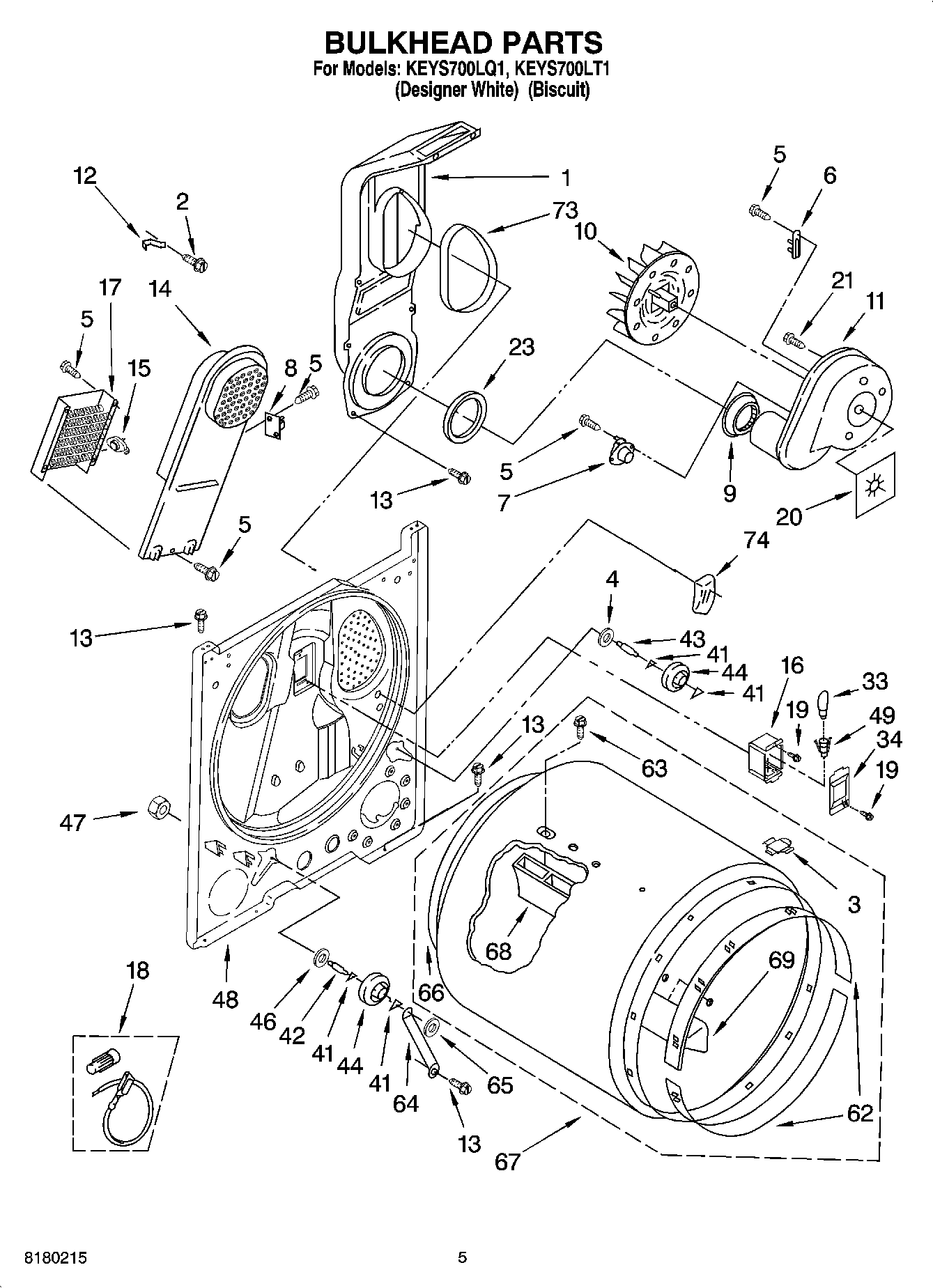

KEYS700LQ1 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	8066086 Whirlpool Plug
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP3387134 Whirlpool Dryer Cycling Thermostat
8	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
9	W11233063 Whirlpool Shield Assembly
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	3977373 Whirlpool Bracket
17	279838 Whirlpool Dryer Heating Element 5400W
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	Seal, Blower
21	WP488729 Whirlpool Refrigerator Door Screw
23	W11415783 Whirlpool Seal
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	W11226088 Whirlpool Lens Assembly
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	W10828905 Whirlpool Bulkhead OS1
49	W11700522 Whirlpool Socket
62	279441 Whirlpool Front Bearing Ring
63	WPW10109200 Whirlpool Screw
64	W11684613 Whirlpool Bracket
65	WP90296 Whirlpool Clip
66	W10612022 Whirlpool Felt Seal
67	W10899578 Whirlpool Dryer Drum Assembly
68	BAFFLE-DRM
69	WP3403636 Whirlpool Drum Baffle
73	SEAL
74	WPL ARI87059A4
74	W11224254 Whirlpool Test Kit
74	4392065 Whirlpool Dryer Maintenance Kit
74	3406839 Whirlpool Drying Rack
74	SENSOR KIT
74	4392901 Whirlpool Biscuit Spray Paint
74	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
74	4392899 Whirlpool Biscuit Touch-Up Paint
74	350930 Whirlpool White Spray Paint
74	799344 Whirlpool Refrigerator Paint
74	72017 Whirlpool Appliance Touch-Up Paint White
74	350938 Whirlpool Spray Gun
