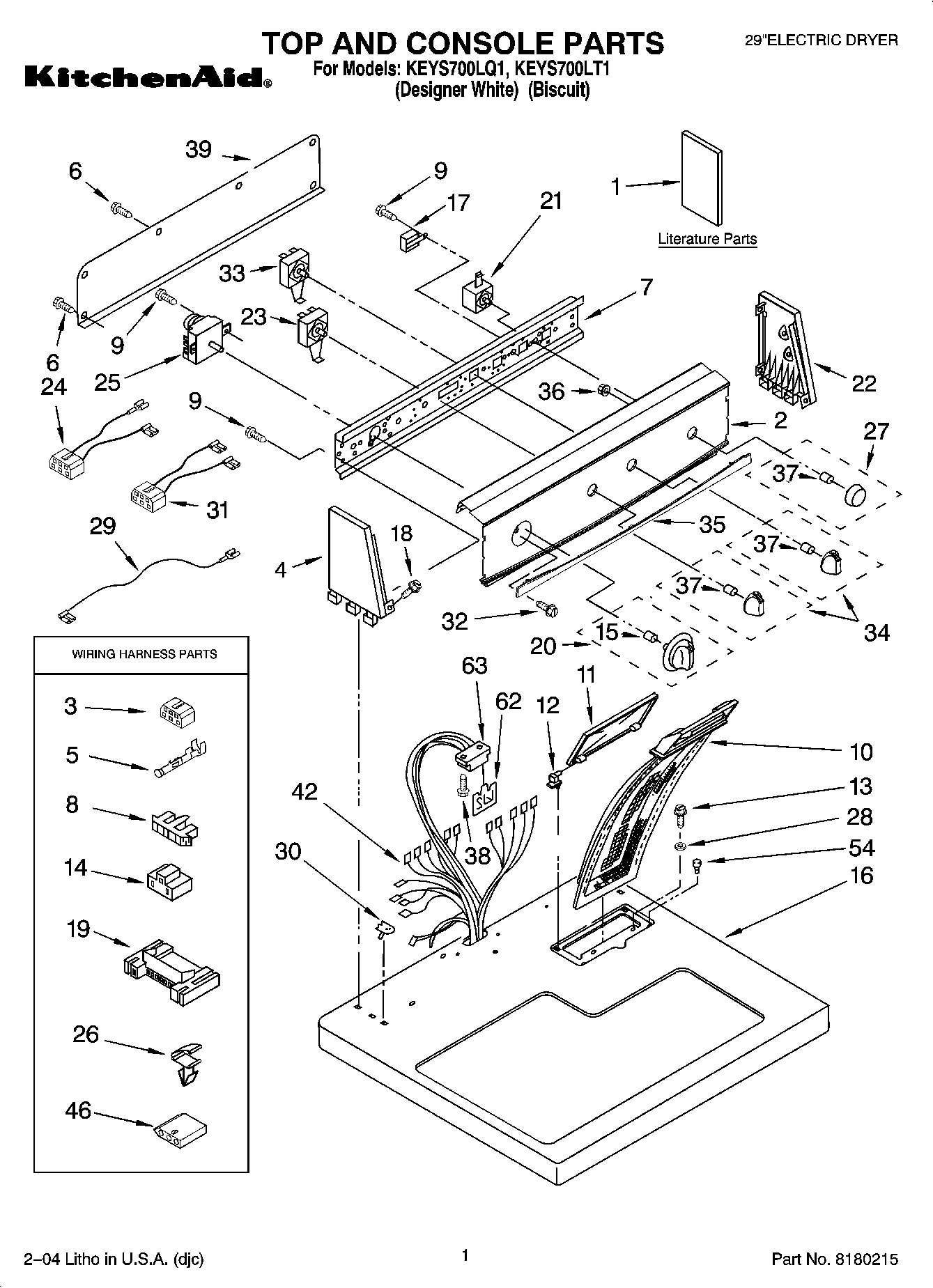

KEYS700LT1 01 – TOP AND CONSOLE PARTS

KEYS700LT1 01 – TOP AND CONSOLE PARTS

Written by

in

KEYS700LT1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL LIT3406699
1Literature Parts (Use & Care Guide)
1Literature Parts (Sheet, Cycle Feature)
2Panel, Control (Includes Illus. 36 & 40) (Biscuit)
2Panel, Control (Includes Illus. 36 & 40)
3Block, Disconnect
4End Cap (L.H.) (White)
4Cap, End (L.H.) (Biscuit)
5WP94614 Whirlpool Terminal
6WP693995 Whirlpool Screw
7Bracket, Control
8Connector, Timer
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143401144 Whirlpool Connector
15WP688805 Whirlpool Spring Clip
16Top
16Top (Biscuit)
17WP694419 Whirlpool Buzzer Adjuster
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (Biscuit)
20Knob, Timer (White)
21WP3398094 Whirlpool Push To Start Switch
22End Cap (R.H.) (White)
22End Cap (R.H.) (Biscuit)
23WP3399639 Whirlpool Switch
243401695 Whirlpool Wire Harness
25WP3976570 Whirlpool Timer
26WP3394427 Whirlpool Clip
27Knob, Push To Start (White)
27Knob, Push To Start (Biscuit)
28Washer
29Wire, Jumper (White)
30WP357213 Whirlpool Hinge Stopper
318539893 Whirlpool Wire Harness
323400859 Whirlpool Screw
333399638 Whirlpool Switch
34WPL 3956182
34WPL 3956183
35WPL 8536944
35WPL 8536945
36WPL 8533828
37WP8536939 Whirlpool Spring Clip
38WP33001882 Whirlpool Screw
39W10103406 Whirlpool Rear Panel
42Harness, Wiring
463936144 Whirlpool Connector
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
633391885 Whirlpool Connector
