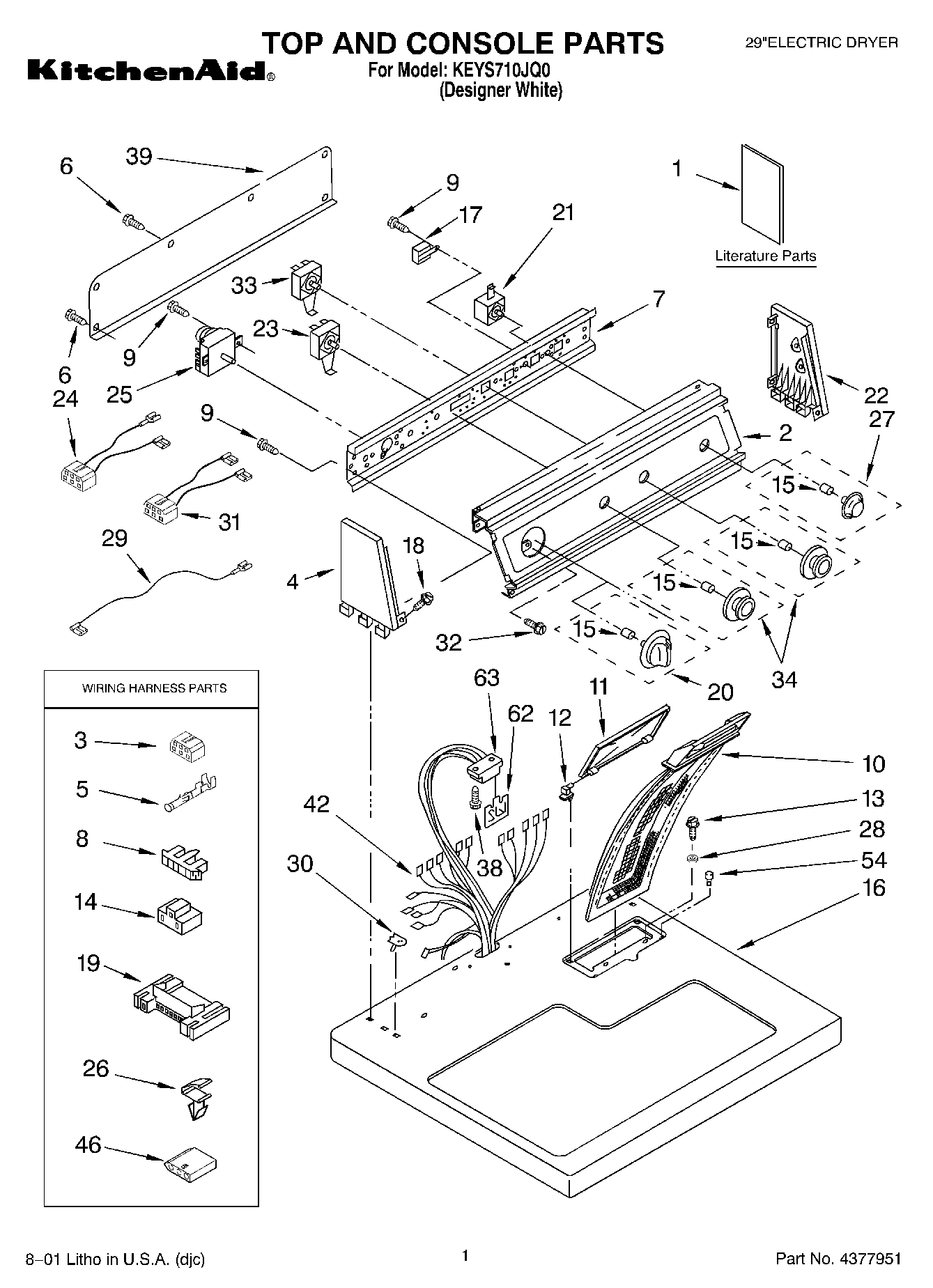

| 1 | WPL LIT3397618 |
| 1 | WPL LIT3406699 |
| 1 | Literature Parts (Use & Care Guide) |
| 2 | Panel, Control |
| 3 | Block, Disconnect |
| 4 | End Cap (L.H.) (White) |
| 5 | WP94614 Whirlpool Terminal |
| 6 | WP693995 Whirlpool Screw |
| 7 | Bracket, Control |
| 8 | Connector, Timer |
| 9 | WPW10139210 Whirlpool Screw |
| 10 | WP349639 Whirlpool Lint Filter |
| 11 | Cover, Lint Screen |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | 3401144 Whirlpool Connector |
| 15 | WP688805 Whirlpool Spring Clip |
| 16 | Top |
| 17 | WP694419 Whirlpool Buzzer Adjuster |
| 18 | WP388326 Whirlpool Screw |
| 19 | 3395683 Whirlpool Connector |
| 20 | Knob, Timer (White) |
| 21 | WP3398094 Whirlpool Push To Start Switch |
| 22 | End Cap (R.H.) (White) |
| 23 | WP3399639 Whirlpool Switch |
| 24 | 3401695 Whirlpool Wire Harness |
| 25 | WP3976570 Whirlpool Timer |
| 26 | WP3394427 Whirlpool Clip |
| 27 | Knob, Push To Start (White) |
| 28 | Washer |
| 29 | Wire, Jumper (White) |
| 30 | WP357213 Whirlpool Hinge Stopper |
| 31 | 8539893 Whirlpool Wire Harness |
| 32 | 3400859 Whirlpool Screw |
| 33 | 3399638 Whirlpool Switch |
| 34 | Knob, Control (2) (White) |
| 38 | WP33001882 Whirlpool Screw |
| 39 | W10103406 Whirlpool Rear Panel |
| 42 | Harness, Electric |
| 46 | 3936144 Whirlpool Connector |
| 54 | Bumper, Lint Lid |
| 62 | WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core |
| 63 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 63 | 799344 Whirlpool Refrigerator Paint |
| 63 | 350938 Whirlpool Spray Gun |
| 63 | 350930 Whirlpool White Spray Paint |
| 63 | 3406839 Whirlpool Drying Rack |
| 63 | 3391885 Whirlpool Connector |
