KEYS750GQ0 01 – SECTION

KEYS750GQ0 01 – SECTION

Written by

in

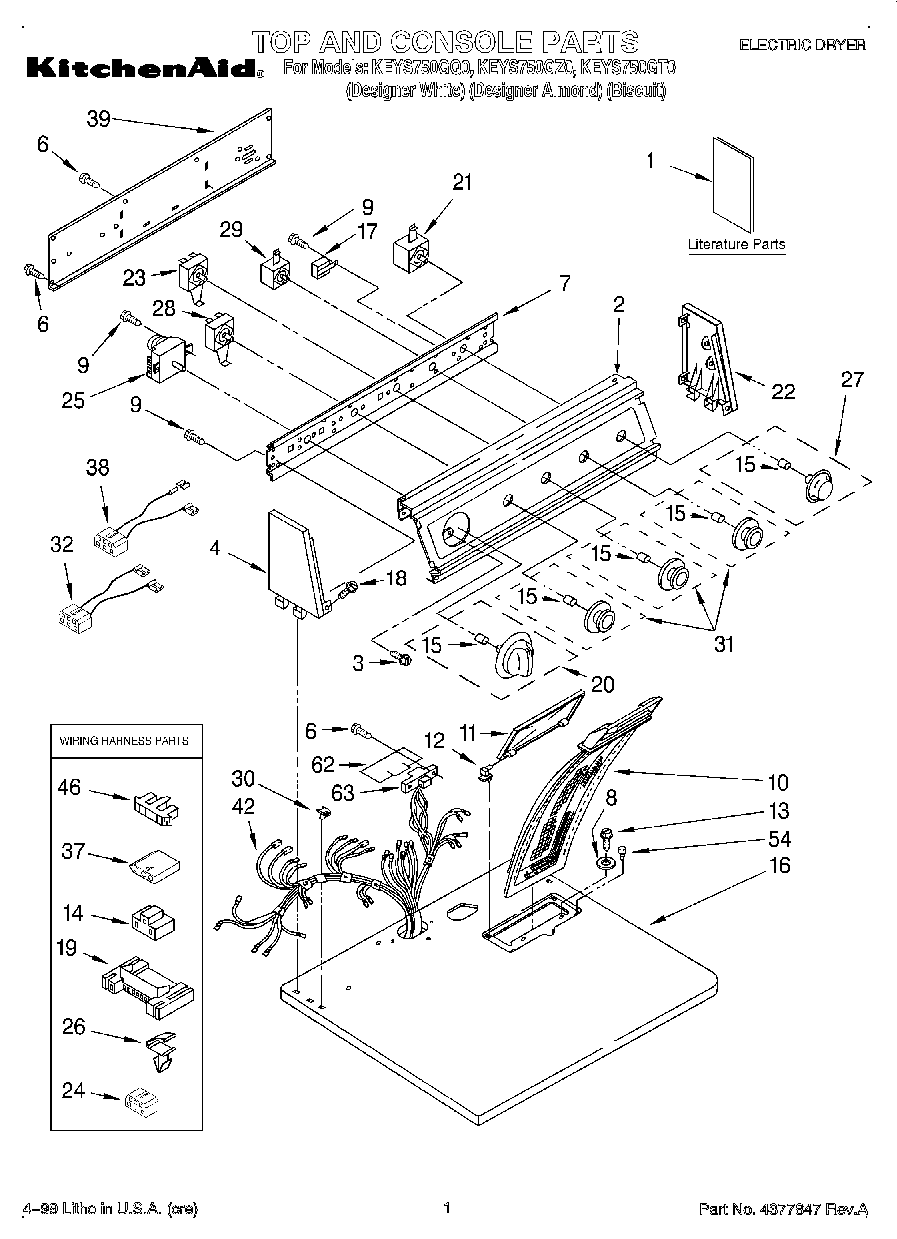

KEYS750GQ0 01 – SECTION

Products

PositionProduct
1WPL LIT3397618
1WPL LIT3405633
1WPL LIT3406699
2Panel, Control (Biscuit)
2Panel, Control (Almond)
2Panel, Control (White)
33400859 Whirlpool Screw
4End Cap (L.H.)
4Cap, End (L.H.) (Biscuit)
4Cap, End (L.H.)
6WP693995 Whirlpool Screw
7Bracket, Control
8Washer
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143401144 Whirlpool Connector
15WP688805 Whirlpool Spring Clip
16Top (Almond)
16Top (Biscuit)
16Top (White)
17WP694419 Whirlpool Buzzer Adjuster
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (White)
20Knob, Timer (Biscuit)
20Knob, Timer (Almond)
21WP3398094 Whirlpool Push To Start Switch
22Cap, End (R.H.) (Biscuit)
22Cap, End (R.H.)
22Cap, End (R.H.)
23WP3399639 Whirlpool Switch
24Block, Disconnect
25WP3976570 Whirlpool Timer
26WP3394427 Whirlpool Clip
27Knob, Push-To-Start (Biscuit)
27Knob, Push To Start (White)
27Knob, Push To Start (Almond)
28WP3405156 Whirlpool Switch
293399638 Whirlpool Switch
30WP357213 Whirlpool Hinge Stopper
31WPL 3979704
31Knob, Control (2) (White)
31Knob, Control (Almond Model)
328539893 Whirlpool Wire Harness
373936144 Whirlpool Connector
383401695 Whirlpool Wire Harness
383397695 Whirlpool Wire Harness
39Panel, Rear Console
42Harness, Electric
46Connector, Timer
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63350956 Whirlpool Spray Assembly
6372017 Whirlpool Appliance Touch-Up Paint White
63799344 Whirlpool Refrigerator Paint
63WP72107 Whirlpool Touchup
63350930 Whirlpool White Spray Paint
63Almond (Uncut)
633391885 Whirlpool Connector
63350938 Whirlpool Spray Gun
