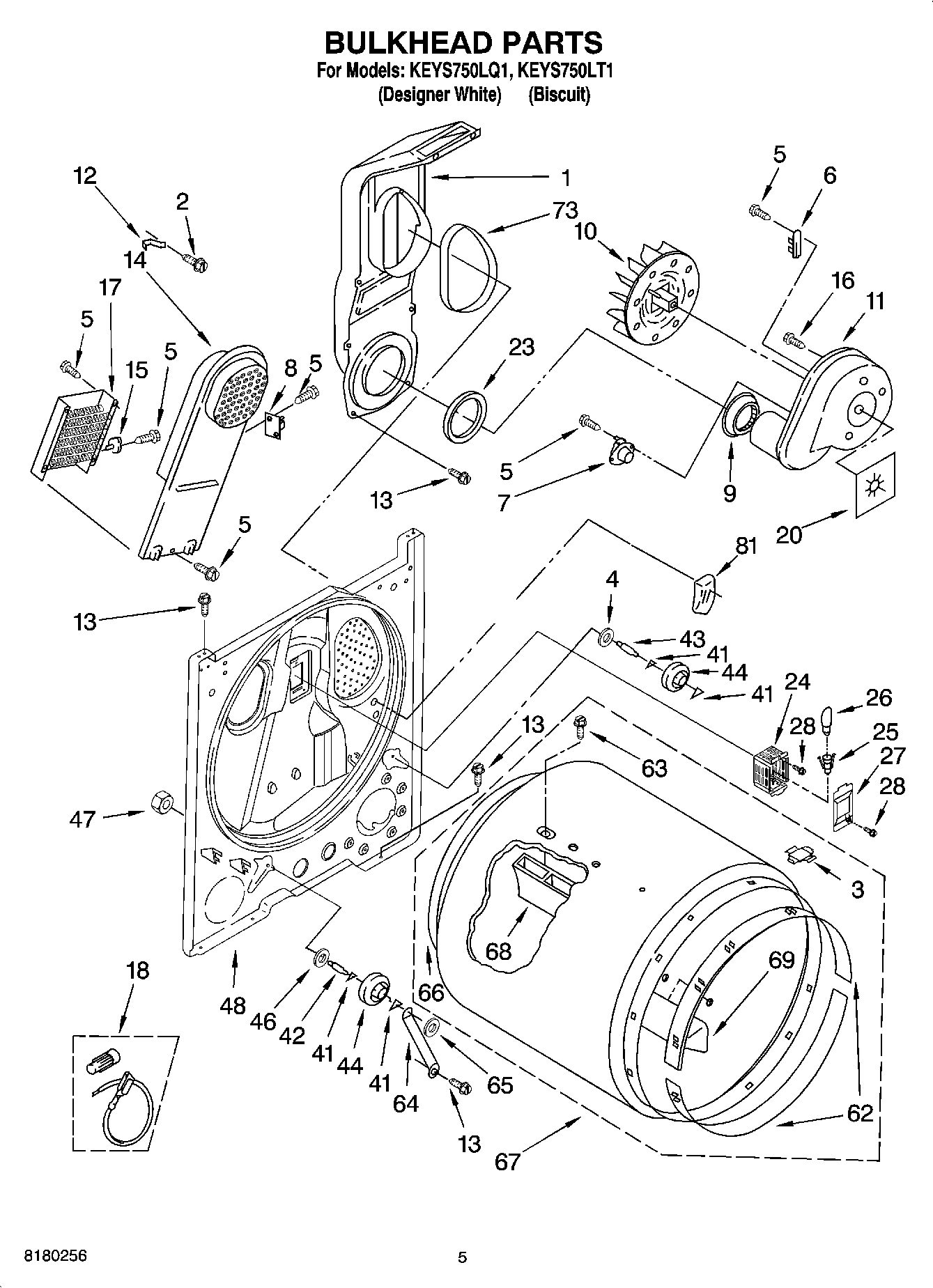

KEYS750LT1 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	8066086 Whirlpool Plug
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP3387134 Whirlpool Dryer Cycling Thermostat
8	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
9	W11233063 Whirlpool Shield Assembly
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	WP488729 Whirlpool Refrigerator Door Screw
17	279838 Whirlpool Dryer Heating Element 5400W
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	Seal, Blower
23	W11415783 Whirlpool Seal
24	3977373 Whirlpool Bracket
25	W11700522 Whirlpool Socket
26	WP22002263 Whirlpool Dryer 10W Light Bulb
27	W11226088 Whirlpool Lens Assembly
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	W10828905 Whirlpool Bulkhead OS1
62	279441 Whirlpool Front Bearing Ring
63	WPW10109200 Whirlpool Screw
64	W11684613 Whirlpool Bracket
65	WP90296 Whirlpool Clip
66	W10612022 Whirlpool Felt Seal
67	W10899578 Whirlpool Dryer Drum Assembly
68	BAFFLE-DRM
69	WP3403636 Whirlpool Drum Baffle
73	SEAL
81	SENSOR KIT
