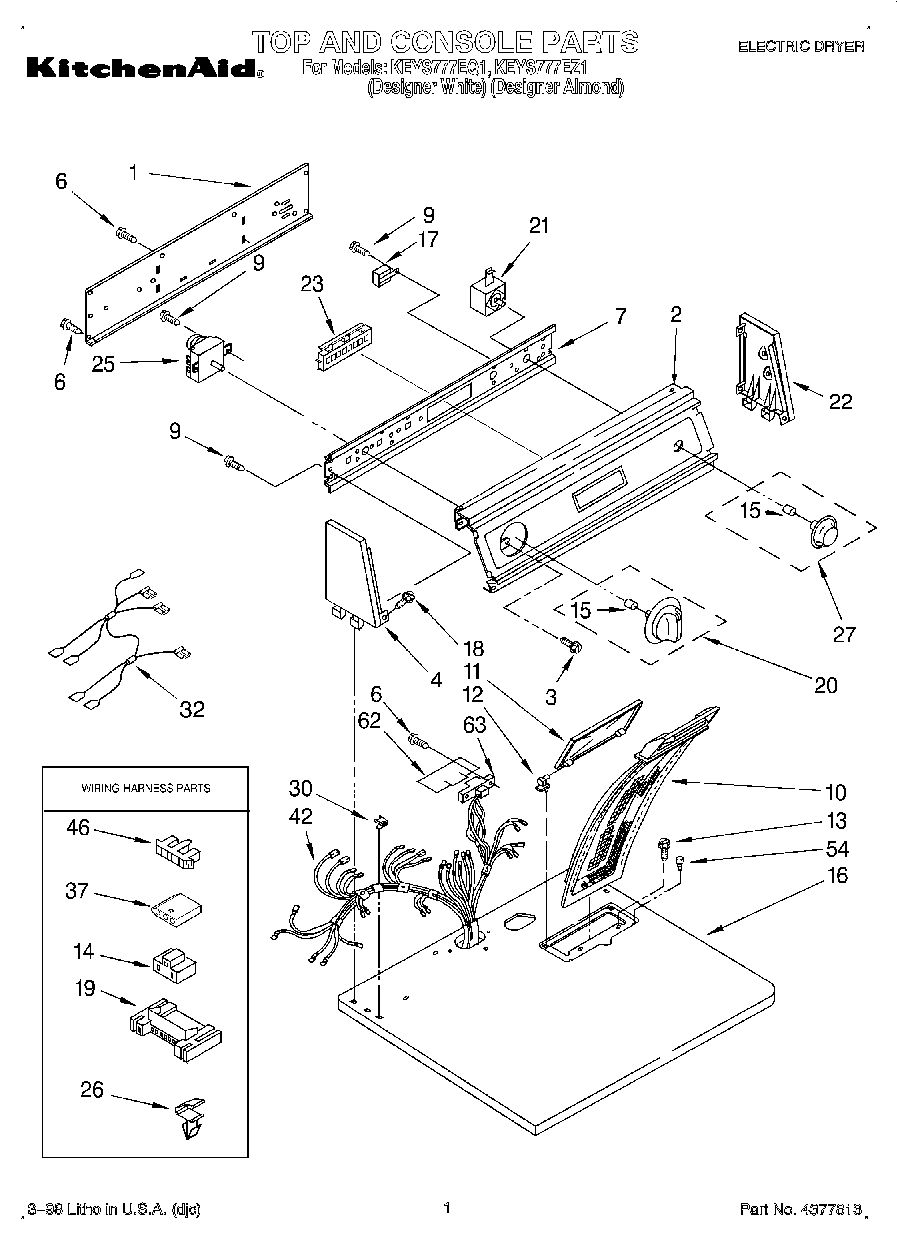

KEYS777EQ1 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3397618
	WPL LIT3405630
	WPL LIT3406681
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	Panel, Control (White)
2	Panel, Control (Almond)
3	3400859 Whirlpool Screw
4	Cap, End (L.H.)
4	End Cap (L.H.)
6	WP693995 Whirlpool Screw
7	Bracket, Control
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3401144 Whirlpool Connector
15	WP688805 Whirlpool Spring Clip
16	Top (White)
16	Top (Almond)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP388326 Whirlpool Screw
19	3395683 Whirlpool Connector
20	Knob, Timer (Almond)
20	Knob, Timer (White)
21	WP3398094 Whirlpool Push To Start Switch
22	Cap, End (R.H.)
22	Cap, End (R.H.)
23	Switch-Tap Touch (White)
23	Switch-Tap Touch (Almond)
25	Timer, 60Hz.
26	WP3394427 Whirlpool Clip
27	Knob, Push To Start (Almond)
27	Knob, Push To Start (White)
30	WP357213 Whirlpool Hinge Stopper
32	Wire, Jumper (Signal Bypass)
37	3936144 Whirlpool Connector
42	Harness, Electric
46	Connector, Timer
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
