KEYS777EQ1 03 – SECTION

KEYS777EQ1 03 – SECTION

Written by

in

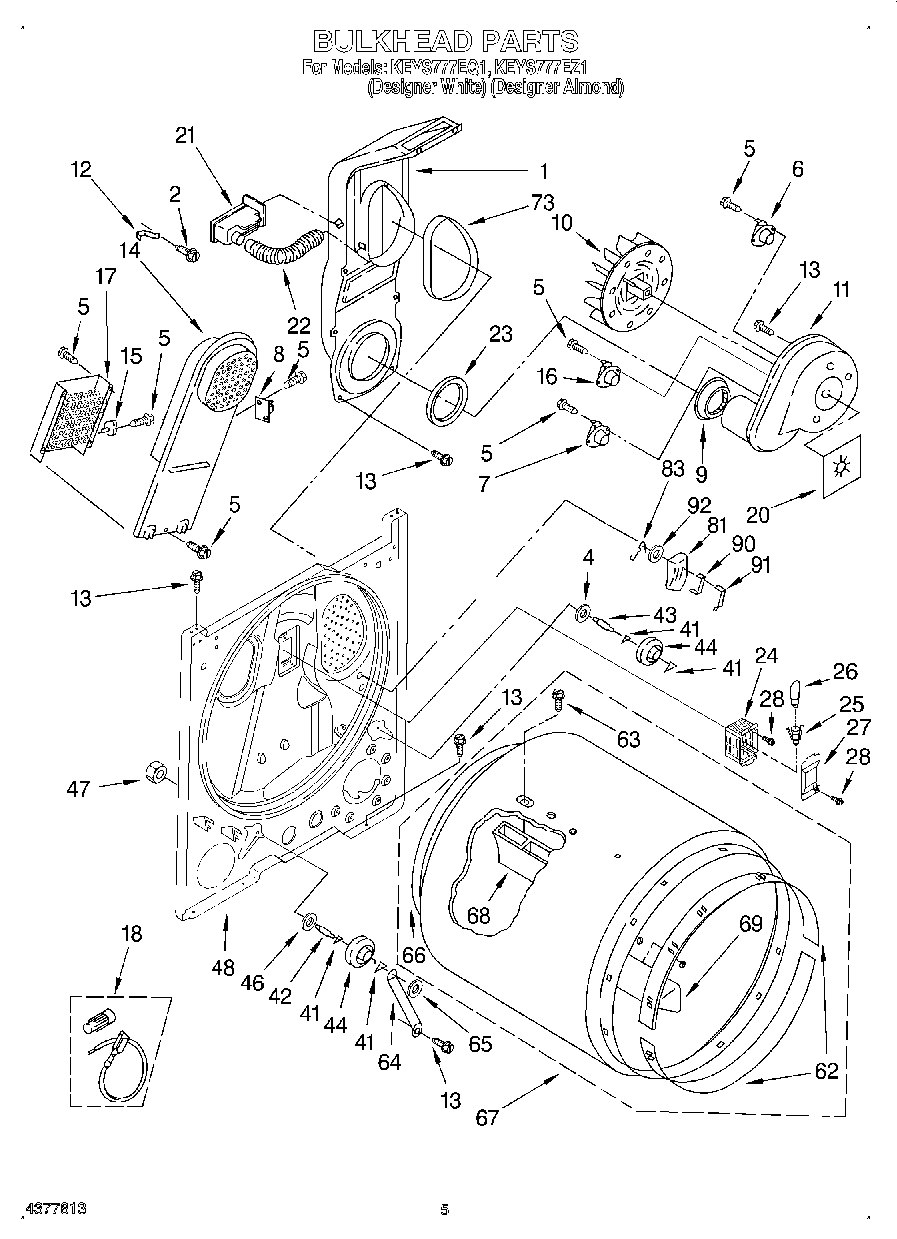

KEYS777EQ1 03 – SECTION

Products

PositionProduct
1Lint Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
4WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6WP3390719 Whirlpool Dryer Thermal Fuse
7WP3387134 Whirlpool Dryer Cycling Thermostat
8279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
9W11233063 Whirlpool Shield Assembly
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3404153 Whirlpool Thermostat
16Thermostat, 135~F (57.2C)
17WP3401338 Whirlpool Element
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
20Seal, Blower
21Alert, Lint
22Hose, Differential
23W11415783 Whirlpool Seal
243977373 Whirlpool Bracket
25W11700522 Whirlpool Socket
26WP22002263 Whirlpool Dryer 10W Light Bulb
27W11226088 Whirlpool Lens Assembly
28WP488729 Whirlpool Refrigerator Door Screw
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44WPW10314173 Whirlpool Dryer Drum Support Wheel
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48W10828905 Whirlpool Bulkhead OS1
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
64W11684613 Whirlpool Bracket
65WP90296 Whirlpool Clip
66W10612022 Whirlpool Felt Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69WP3403636 Whirlpool Drum Baffle
73SEAL
81SENSOR KIT
83Clip, Sensor
90WP348859 Whirlpool Electrode Assembly
91WP348860 Whirlpool Electrode
92WP298877 Whirlpool Washer
