KEYS850JT0 01 – SECTION

KEYS850JT0 01 – SECTION

Written by

in

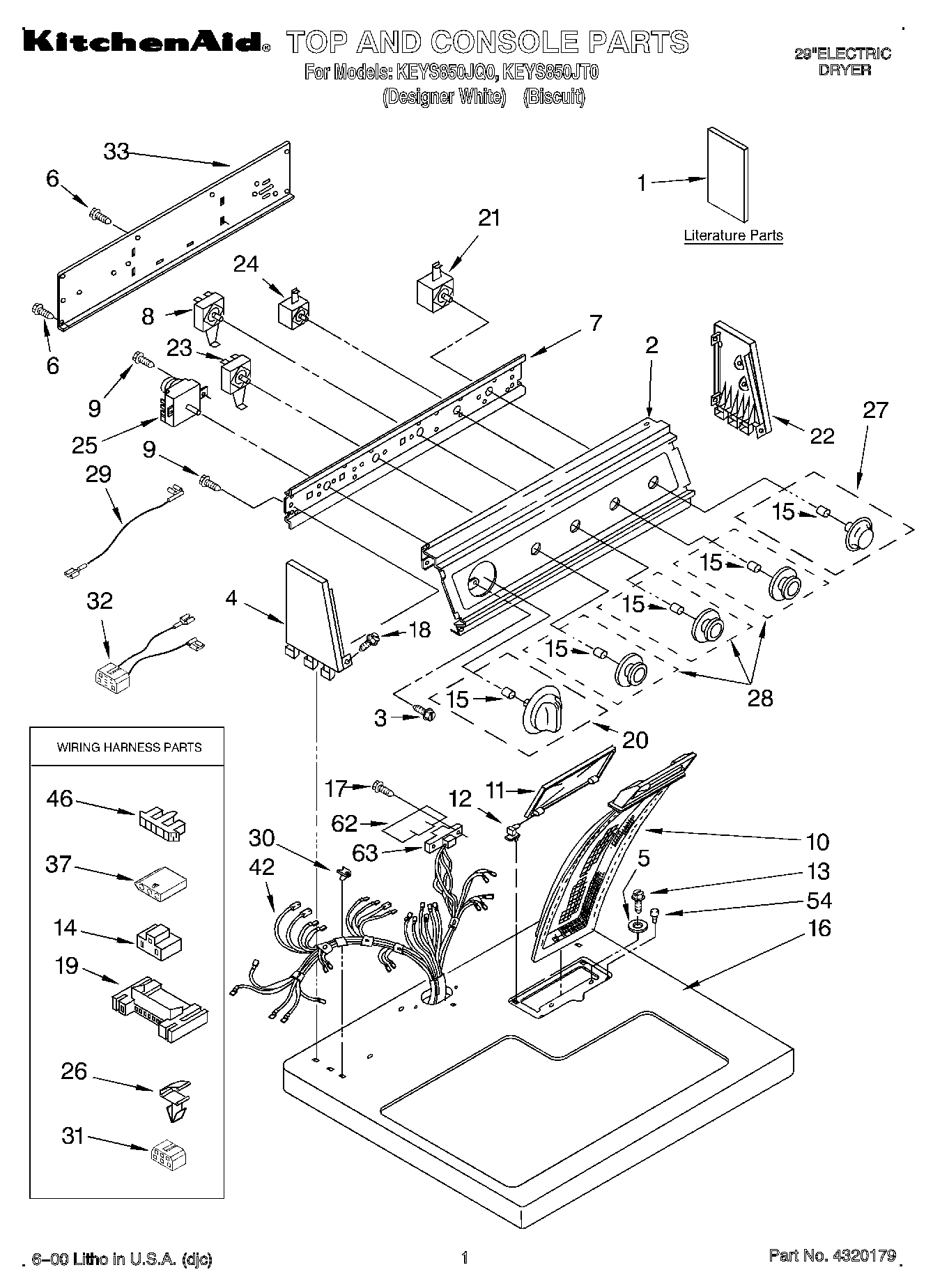

KEYS850JT0 01 – SECTION

Products

Position	Product
1	WPL LIT3397618
1	Literature Parts (Use & Care Guide)
1	WPL LIT3406681
2	Panel, Control (Biscuit)
2	Panel, Control (White)
3	3400859 Whirlpool Screw
4	End Cap (L.H.) (White)
4	Cap, End (L.H.) (Biscuit)
5	Washer
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	WP3405156 Whirlpool Switch
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Biscuit)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3401144 Whirlpool Connector
15	WP688805 Whirlpool Spring Clip
16	Top
16	Top (Biscuit)
17	WP33001882 Whirlpool Screw
18	WP388326 Whirlpool Screw
19	3395683 Whirlpool Connector
20	Knob, Timer (White)
20	Knob, Timer (Biscuit)
21	WP3398094 Whirlpool Push To Start Switch
22	End Cap (R.H.) (White)
22	End Cap (R.H.) (Biscuit)
23	Switch, Temperature
24	WP3398093 Whirlpool Buzzer Adjuster
25	WP3976570 Whirlpool Timer
26	WP3394427 Whirlpool Clip
27	Knob, Push-To-Start (Biscuit)
27	Knob, Push To Start (White)
28	Knob, Control (2) (Biscuit)
28	Knob, Control (2) (White)
29	Wire, Jumper (Tan)
30	WP357213 Whirlpool Hinge Stopper
31	Block, Disconnect
32	Wire, Jumper
33	W10103406 Whirlpool Rear Panel
37	3936144 Whirlpool Connector
42	Harness, Electric
46	Connector, Timer
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	4392899 Whirlpool Biscuit Touch-Up Paint
63	4392901 Whirlpool Biscuit Spray Paint
63	799344 Whirlpool Refrigerator Paint
63	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
63	72017 Whirlpool Appliance Touch-Up Paint White
63	3391885 Whirlpool Connector
63	350938 Whirlpool Spray Gun
63	350930 Whirlpool White Spray Paint
