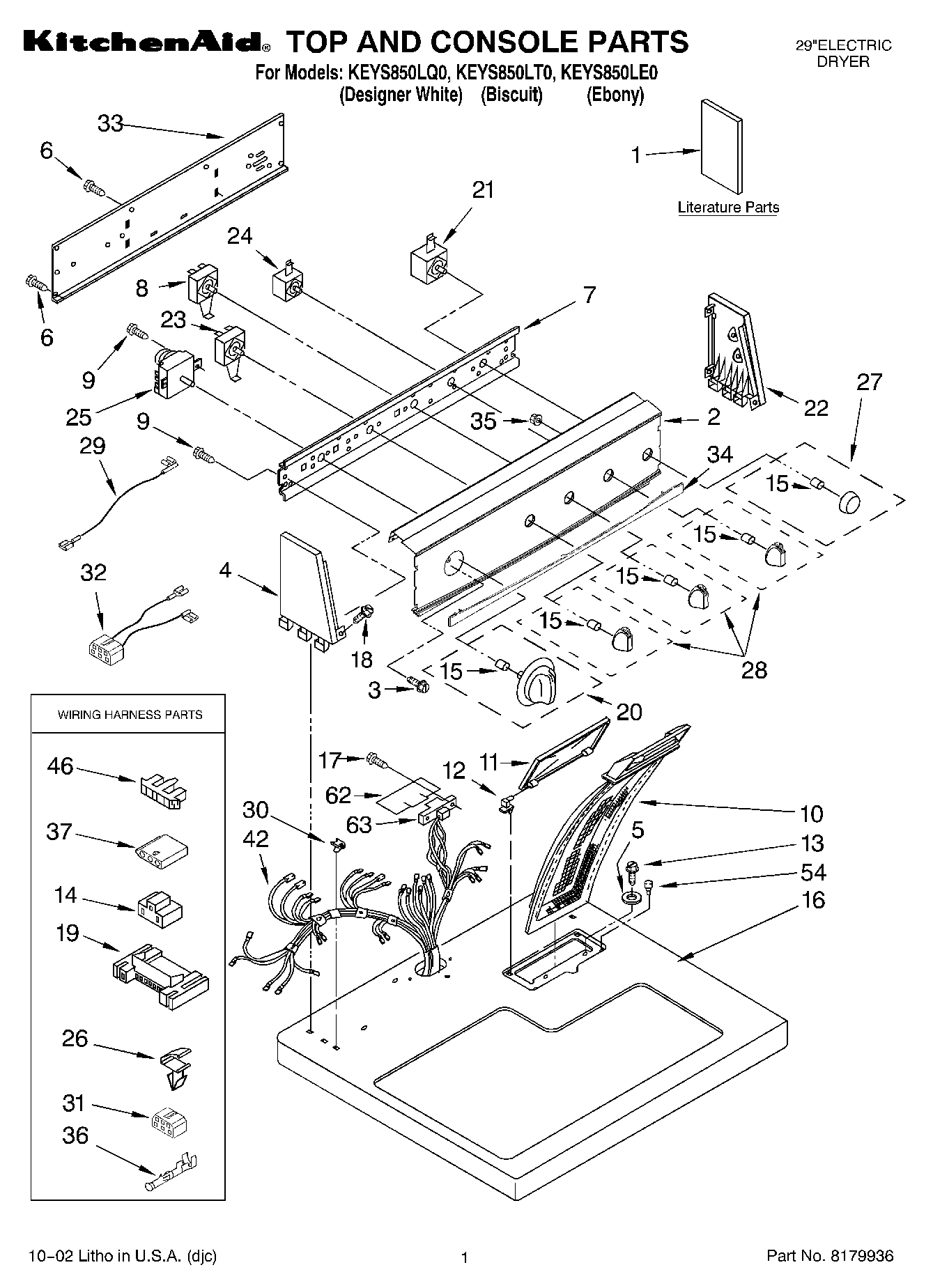

KEYS850LQ0 01 – SECTION

Products

Position	Product
	Dryer
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	WPL LIT3406681
2	Panel, Control (Includes Illus. 39 & 40) (White)
2	Panel, Control (Includes Illus. 39 & 40) (Biscuit)
2	Panel, Control (Includes Illus. 39 & 40) (Black)
3	3400859 Whirlpool Screw
4	Cap, End (L.H.) (Biscuit)
4	End Cap (L.H.) (White)
4	End Cap (L.H.) (Black)
5	Washer
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	WP3405156 Whirlpool Switch
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Biscuit)
11	Cover, Lint Screen
11	Cover, Lint Screen (Black)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3401144 Whirlpool Connector
15	WP688805 Whirlpool Spring Clip
16	Top (Black)
16	Top
16	Top (Biscuit)
17	WP33001882 Whirlpool Screw
18	WP388326 Whirlpool Screw
19	3395683 Whirlpool Connector
20	Knob, Timer (Biscuit)
20	Knob, Timer (White)
20	Knob, Timer (Black)
21	WP3398094 Whirlpool Push To Start Switch
22	End Cap (R.H.) (Black)
22	End Cap (R.H.) (White)
22	End Cap (R.H.) (Biscuit)
23	Switch, Temperature
24	WP3398093 Whirlpool Buzzer Adjuster
25	WP3976570 Whirlpool Timer
26	WP3394427 Whirlpool Clip
27	WPL 8536923
27	Knob, Push To Start (Biscuit)
27	Knob, Push To Start (White)
28	WPL 8536925
28	Kn
28	WPL 8536926
29	Wire, Jumper (Tan)
30	WP357213 Whirlpool Hinge Stopper
31	Block, Disconnect
32	Wire, Jumper
33	W10103406 Whirlpool Rear Panel
34	WPL 8536945
34	WPL 8536946
34	WPL 8536944
35	WPL 8533828
36	WP94614 Whirlpool Terminal
37	3936144 Whirlpool Connector
42	WPL 8299895
46	Connector, Timer
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
