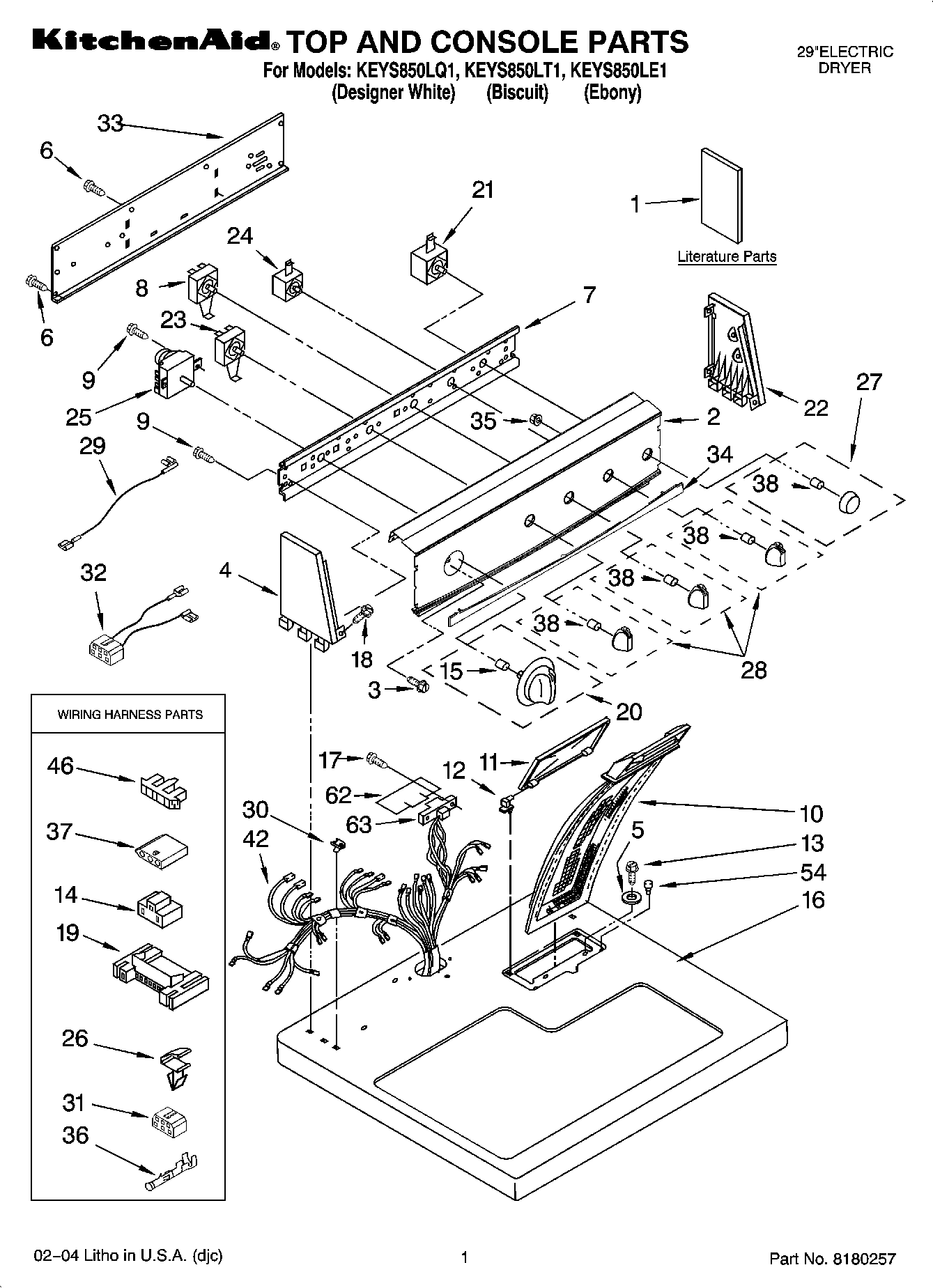

KEYS850LT1 01 – TOP AND CONSOLE PARTS

KEYS850LT1 01 – TOP AND CONSOLE PARTS

Written by

in

KEYS850LT1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1WPL LIT3406681
1Literature Parts (Use & Care Guide)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Sheet, Cycle Feature)
1Dryer
2Panel, Control (Includes Illus. 39 & 40) (Biscuit)
2Panel, Control (Includes Illus. 39 & 40) (Black)
2Panel, Control (Includes Illus. 39 & 40) (White)
33400859 Whirlpool Screw
4End Cap (L.H.) (Black)
4Cap, End (L.H.) (Biscuit)
4End Cap (L.H.) (White)
5Washer
6WP693995 Whirlpool Screw
7Bracket, Control
8WP3405156 Whirlpool Switch
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
11Cover, Lint Screen (Black)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143401144 Whirlpool Connector
15WP688805 Whirlpool Spring Clip
16Top (Black)
16Top
16Top (Biscuit)
17WP33001882 Whirlpool Screw
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (Biscuit)
20Knob, Timer (White)
20Knob, Timer (Black)
21WP3398094 Whirlpool Push To Start Switch
22End Cap (R.H.) (Biscuit)
22End Cap (R.H.) (White)
22End Cap (R.H.) (Black)
23Switch, Temperature
24WP3398093 Whirlpool Buzzer Adjuster
25WP3976570 Whirlpool Timer
26WP3394427 Whirlpool Clip
27WPL 8536923
27Knob, Push To Start (Biscuit)
27Knob, Push To Start (White)
28WPL 3956184
28WPL 3956182
28WPL 3956183
29Wire, Jumper (Tan)
30WP357213 Whirlpool Hinge Stopper
31Block, Disconnect
32Wire, Jumper
33W10103406 Whirlpool Rear Panel
34WPL 8536944
34WPL 8536946
34WPL 8536945
35WPL 8533828
36WP94614 Whirlpool Terminal
373936144 Whirlpool Connector
38WP8536939 Whirlpool Spring Clip
42WPL 8299895
46Connector, Timer
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
633391885 Whirlpool Connector
