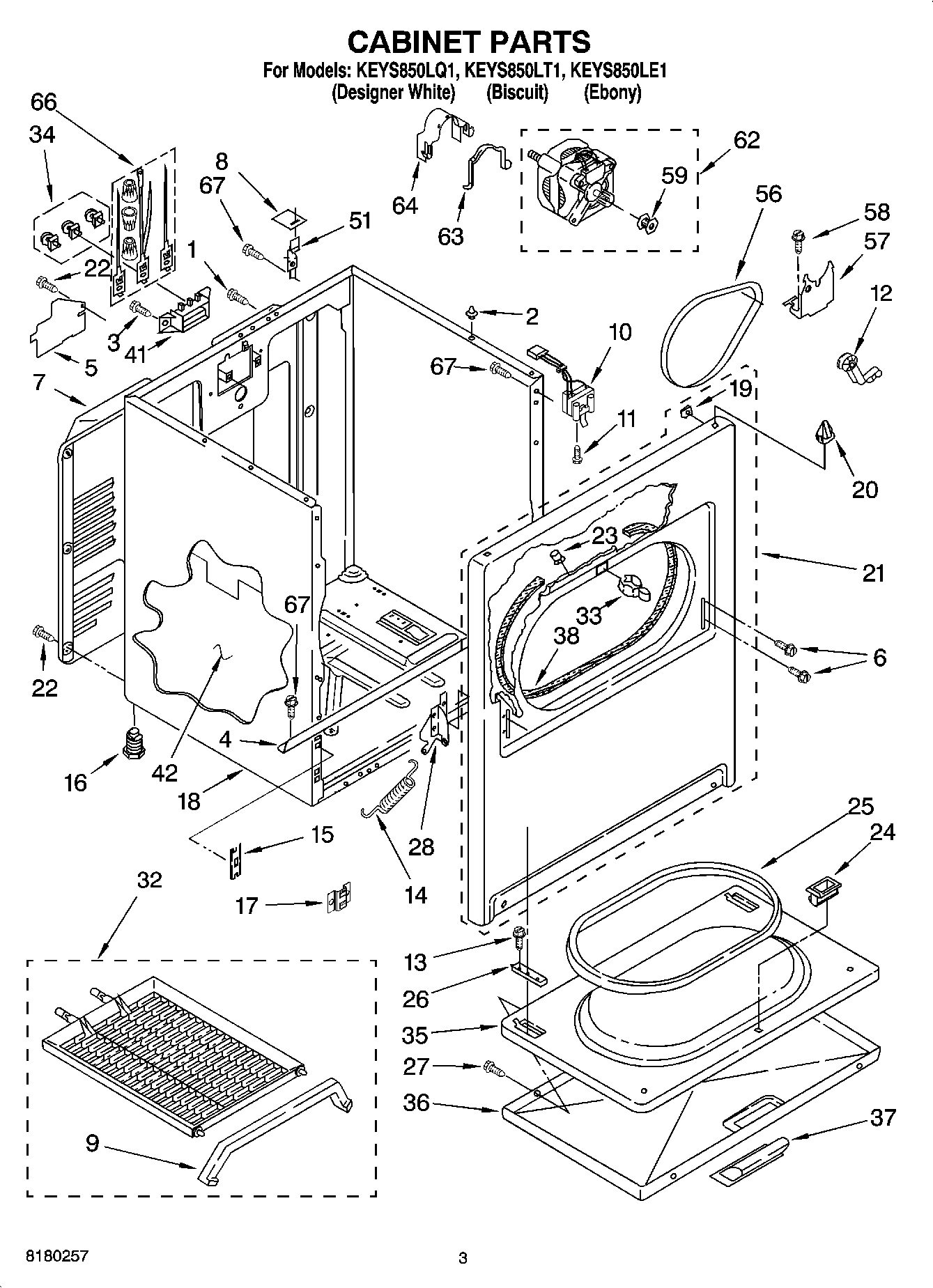

KEYS850LT1 02 – CABINET PARTS

KEYS850LT1 02 – CABINET PARTS

Written by

in

KEYS850LT1 02 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2Locator, Top
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6Screw, 10-32 x 1/2
7280043 Whirlpool Rear Panel
818849 Whirlpool Pad
9Bracket, Dryer Rack
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP691366 Whirlpool Dryer Idler Pulley Assembly
13WP308685 Whirlpool Microwave Screw
148541401 Whirlpool Door Spring
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
178546676 Whirlpool Clip
18Cabinet (Biscuit)
188533643 Whirlpool Dryer White Cabinet
18Cabinet (Includes Illus. 4) (Black)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279891 Whirlpool Panel
21279443 Whirlpool Primary Panel
21Panel, Front (Black)
22WP693995 Whirlpool Screw
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25W10906683 Whirlpool Door Seal
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066056 Whirlpool Door Hinge
28WP8066057 Whirlpool Door Hinge
323406839 Whirlpool Drying Rack
33279570 Whirlpool Dryer Door Latch Kit
34279393 Whirlpool Terminal Block Screw and Nut Kit
35WP695737 Whirlpool Door
36Door, Front (Black)
36Door, Front (Biscuit)
36WP3393549 Whirlpool Door Assembly
37Handle, Door (White)
37Handle, Door (Biscuit)
37Handle, Door (Black)
38W11035878 Whirlpool Bearing and Seal
41WP3397659 Whirlpool Terminal Block
42Board, Sound Dampening
51WP8066217 Whirlpool Hinge
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3404162 Whirlpool Clamp
66279318 Whirlpool Terminal
67SCREW
