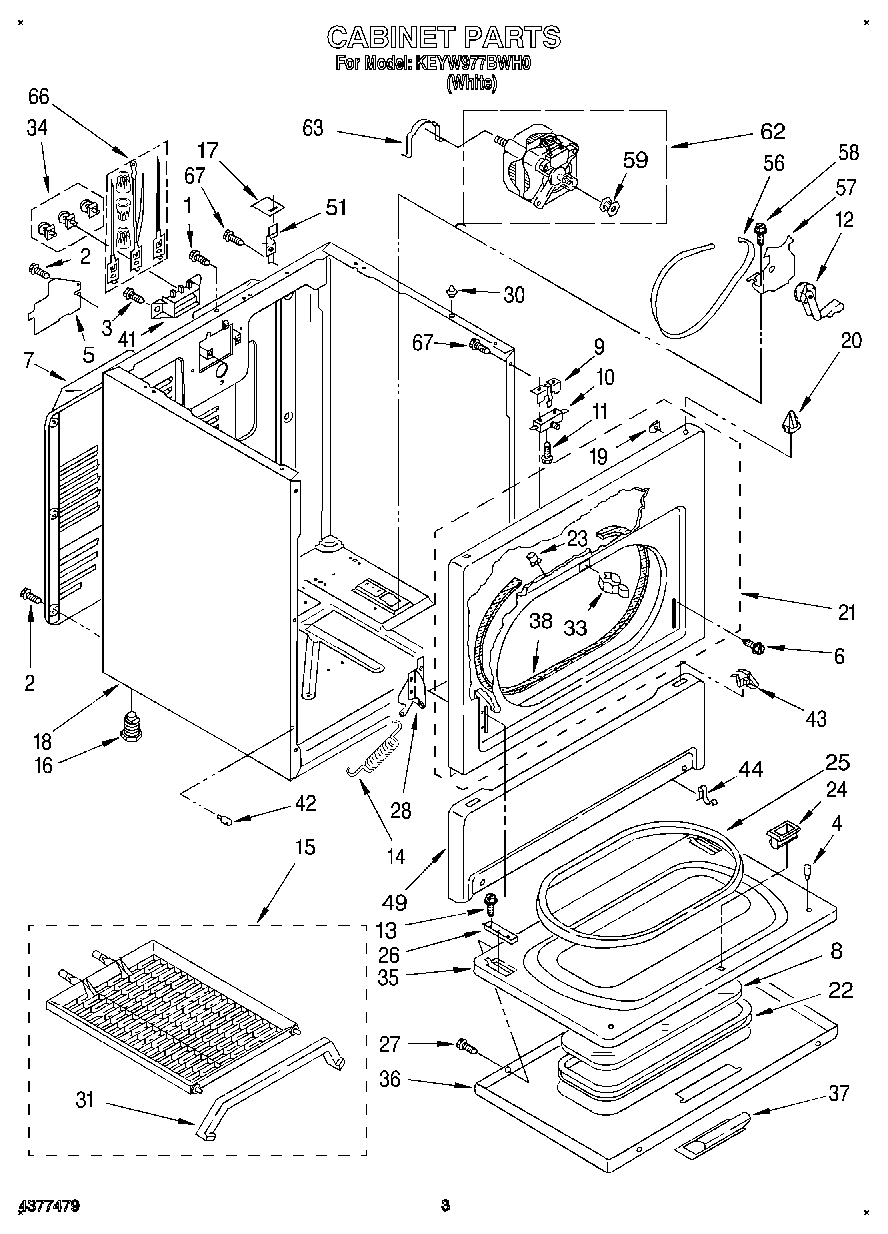

KEYW977BWH0 02 – SECTION

Products

Position	Product
1	W10850756 Whirlpool Screw
2	WP693995 Whirlpool Screw
5	W11539855 Whirlpool Refrigerator Pump
6	Screw, 10-32 x 1/2
7	280043 Whirlpool Rear Panel
8	Window
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	WP691366 Whirlpool Dryer Idler Pulley Assembly
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
15	Rack, Dry
16	49621 Whirlpool Leveling Feet
17	18849 Whirlpool Pad
18	Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279740 Whirlpool Panel Primary with O/S2
22	3392914 Whirlpool Window Frame
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066056 Whirlpool Door Hinge
28	WP8066057 Whirlpool Door Hinge
30	Locator, Top
31	Bracket, Dryer Rack
34	279393 Whirlpool Terminal Block Screw and Nut Kit
35	Door, Rear
36	Door, Front (White)
37	WP348721 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
41	279320 Whirlpool Dryer Rear Terminal Block Kit
42	238614 Whirlpool Bumper Hinge
43	WP3388229 Whirlpool Dryer Spring Clip
44	WP297092 Whirlpool Clip
49	Panel, Toe (White)
51	WP8066217 Whirlpool Hinge
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	Motor, Drive 60 Hz.
63	WP660658 Whirlpool Clamp
66	279318 Whirlpool Terminal
67	SCREW
