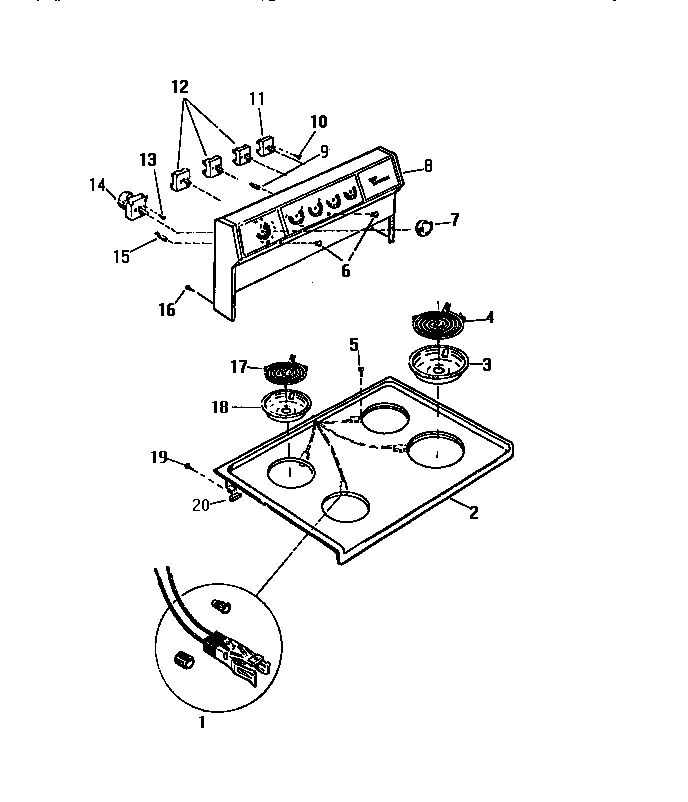

KF100HDD1 02 – BACKGUARD

Products

Position	Product
1	5303935058 Frigidaire Oven Burner Receptacle Kit
2	WCI K5125106
3	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
4	316442300 Frigidaire Oven 2100W Coil Element 8
5	5308014215 Frigidaire Oven Screw
6	LENS
7	KNOB (6)
8	WCI K5268501
10	SCREW
12	5303935086 Frigidaire Oven Top Burner Switch Kit
13	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
14	WCI K5127001
15	LIGHT SIGNAL (OVEN 250V)
17	318372210 Frigidaire Oven Range 6" 1250W Surface Element
18	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19	08002868 Frigidaire 0 Screw Assembly
20	WCI K1315632
