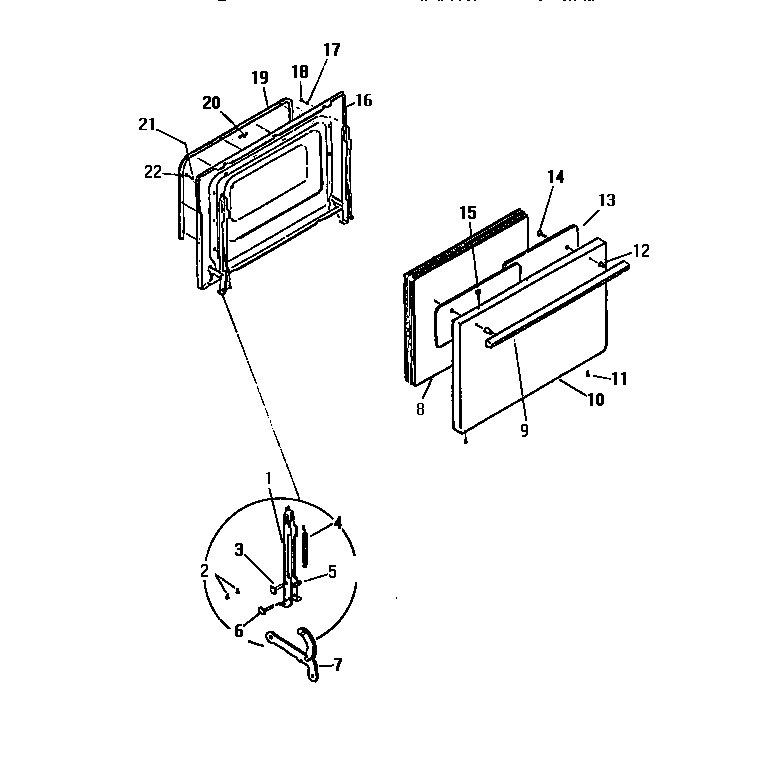

| 1 | CHANNEL ASSY (COMPLETE W/ROLLER & STUD) |
| 3 | RIVET |
| 4 | SPRING |
| 5 | ROLLER PACKAGE-OVEN DOOR (2) |
| 6 | AXLE |
| 7 | ARM ASSY. |
| 8 | INSULATION |
| 9 | HANDLE - DRAWER (CHROME) |
| 10 | PANEL DOOR - ALMOND |
| 12 | SPACER (2) |
| 13 | WCI K5109202 |
| 14 | SCREW ( 2 REQ ) |
| 16 | WCI K1317740 |
| 19 | GASKET (WITH CLIPS) |
| 20 | WCI K1309666 |
| 21 | WASHER, PADDED |
| 22 | WCI K1164550 |
