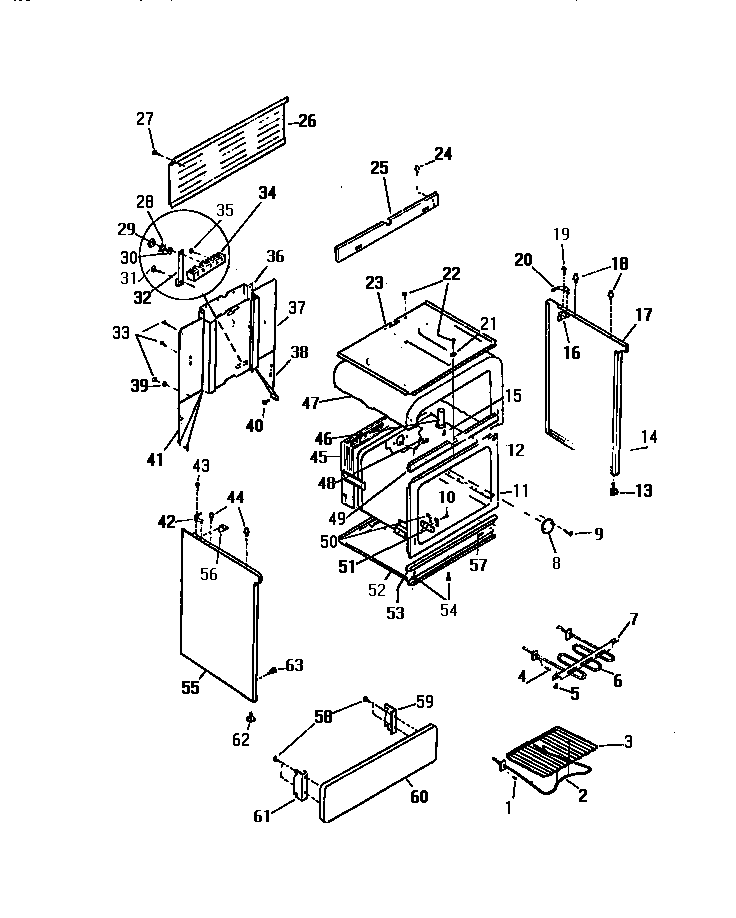

KF100HDD1 04 – OVEN CAVITY

Products

Position	Product
2	5303051519 Frigidaire Oven 2600W Bake Element
3	RACK (2)
6	5303051516 Frigidaire Broil Element
7	HANGER
8	WCI K1325524
10	08002868 Frigidaire 0 Screw Assembly
11	WCI K1325537
12	PLUG-BUTTON 3/4“
15	SCREW
17	END PANEL, RH, ALMOND
20	WCI K1315630
21	WASHER, PADDED
23	WCI K5025704
25	WCI K5287902
26	COVER, WIRE
28	WCI Q500411
29	WCI Q401002
30	WASHER (6)
32	STRAP-GROUND
34	TERMINAL BLOCK
36	COVER, WIRE
37	BACK
38	WCI K1325113
39	WCI Q410505
41	WCI K1325114
42	WCI K1315631
44	BUMPER
45	INSULATION, BACK
46	WCI K1311218
47	INSULATION, WRAP
49	CHANNEL, OV SUPT.
50	WCI K1187203
51	BRACKET – THRM BL (2)
52	PANEL, BTM
53	CHANNEL, OV. SUPT.
55	END PANEL, LH, ALMOND
56	GUSSET, BACKGRD (2)
57	SCREW
59	WCI K1310115
60	WCI K1322705
61	WCI K1310116
62	LEG
63	WCI K1164568
