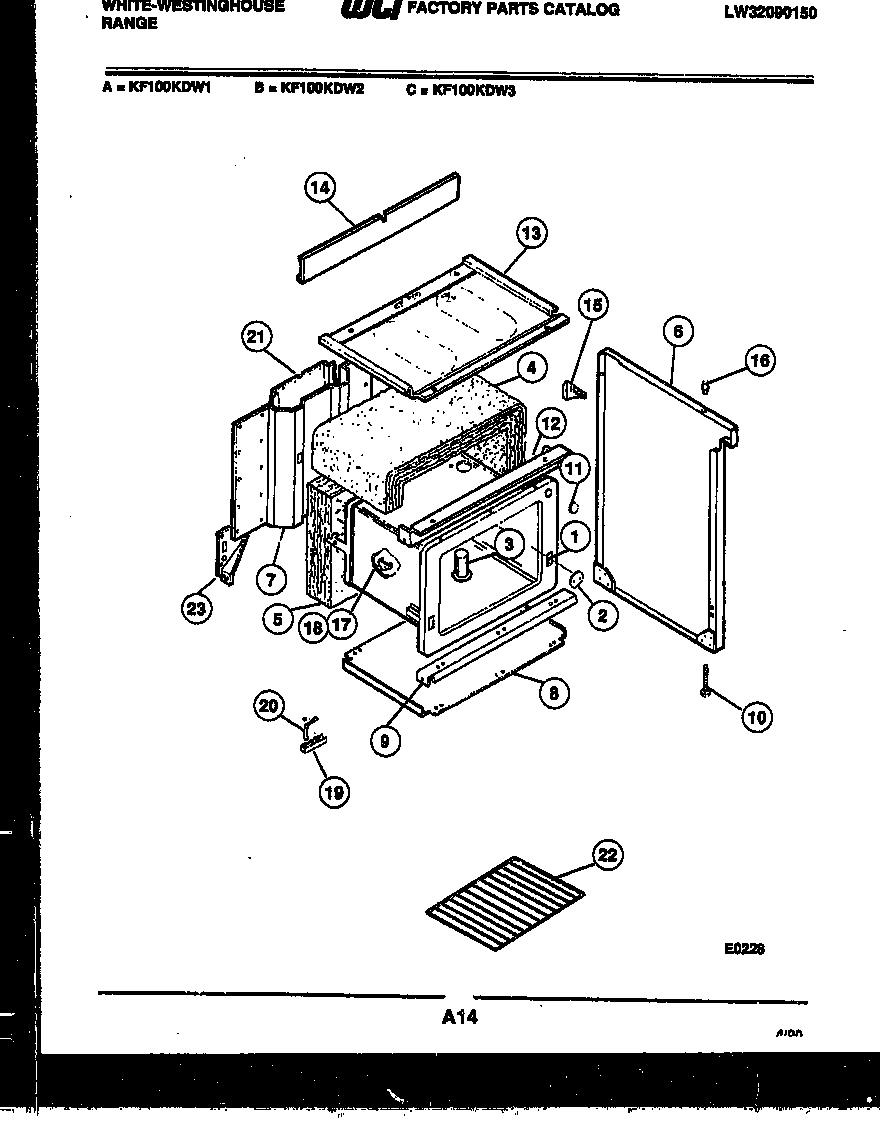

KF100KDD1 06 – BODY PARTS

Products

Position	Product
1	WCI 3204607
2	COVER-OVEN LT HOLE
3	WCI 08012541
4	INSULATION – OVEN WRAP
5	INSULATION
6	SIDE PANEL LH-ALMD
6A	SIDE PANEL RH-ALMD
7	GUSSET-REAR RH
8	WCI K005276504
9	CHANNEL-OVEN SUPT
10	SCREW-LEVELING (4)
11	BUTTON-PLUG
12	CHANNEL-OVEN SPRT
13	WCI K005025704
14	WCI K5287902
15	GUSSET – BKGRD (2)
16	BUMPER, COOKTOP (4)
17	BRACKET-THERMOSTAT BULB
18	WCI 08014181
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	WIRE COVER
22	316067902 Frigidaire Oven Rack
23A	GUSSET – REAR (2)
