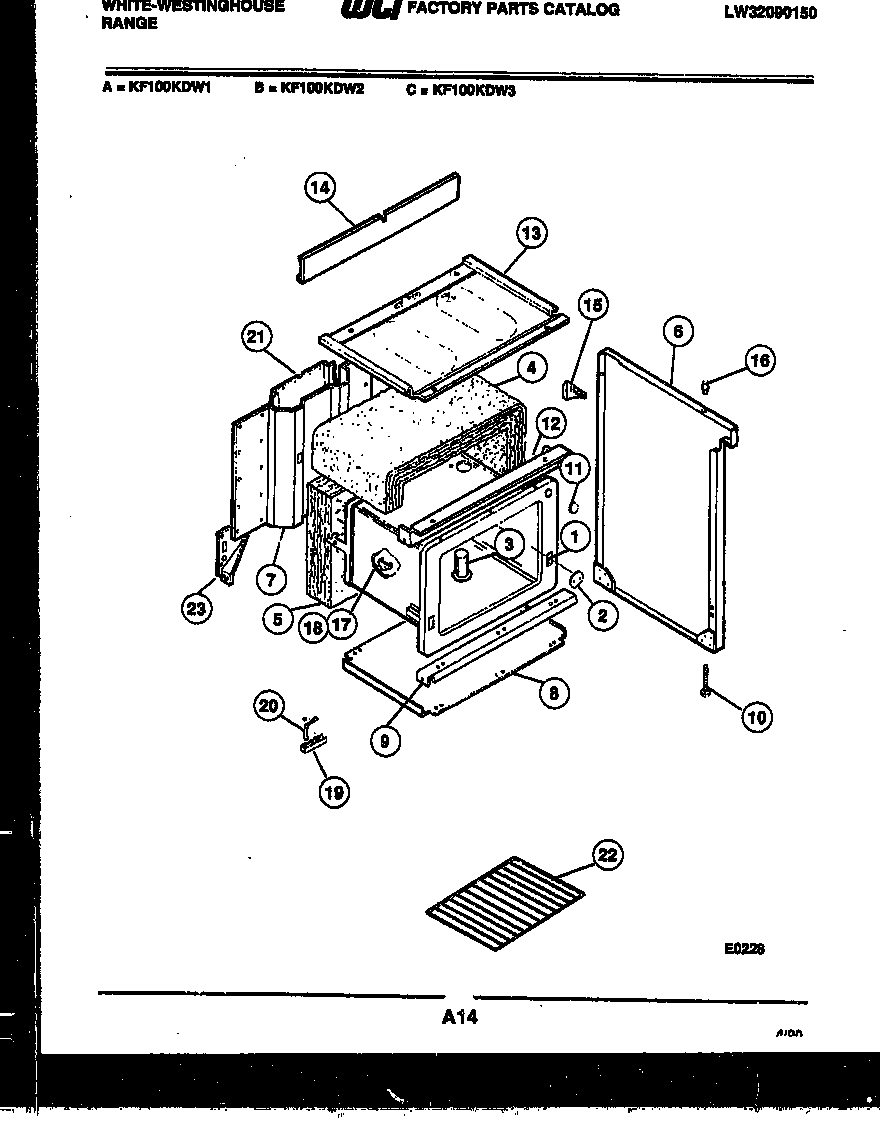

KF100KDD3 06 – BODY PARTS

Products

Position	Product
1	WCI 3204607
2	WCI 3017576
3	WCI 08012541
4	INSULATION - OVEN WRAP
5	INSULATION
6	SIDE PANEL LH-ALMD
6A	SIDE PANEL RH-ALMD
7	WCI 3017535
8	WCI 3206275
9	CHANNEL-OVEN SPRT.
10	LEG, LEVELLER (4)
11	BUTTON-PLUG
12	CHANNEL - OVEN SUPPORT LOWER
13	WCI K005025704
14	WCI 3205755
15	GUSSET - BKGRD (2)
16	BUMPER, COOKTOP (4)
17	WCI 08014653
18	WCI 5300009126
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	WIRE, COVER
22	316067902 Frigidaire Oven Rack
23A	WCI 3017482
23	WCI 3017481
