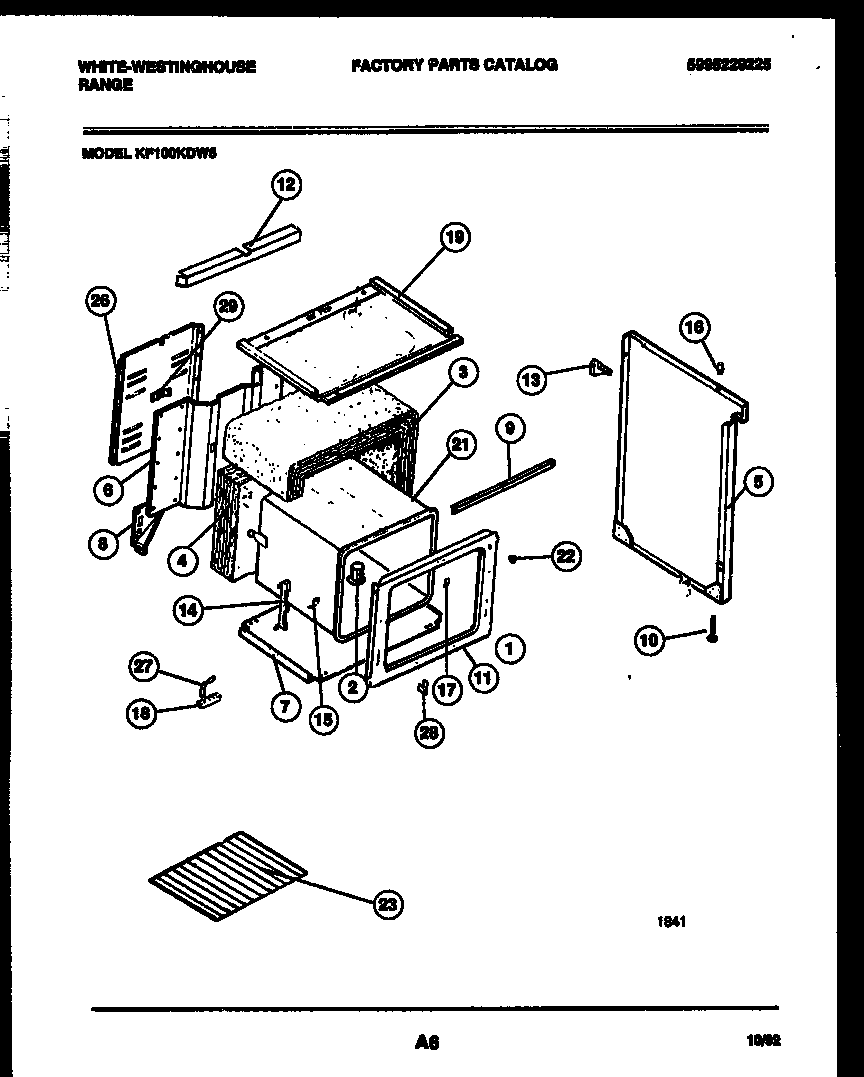

KF100KDD5 06 – BODY PARTS

Products

Position	Product
*70274	WCI 19100210013
*70274	ANTI-TIP KIT, (NON-ILLUSTRATED)
*70274	5303284616 Frigidaire Range Bulb Clip Thermostat
1	WCI 3017576
2	WCI 08012541
3	INSULATION - OVEN WRAP
4	WCI 5303274967
5A	SIDE PANEL LH-ALMD
5	SIDE PANEL RH-ALMD
6	PANEL-BACK
7	WCI 3206275
8	WCI 3017481
8A	WCI 3017482
9	WCI 5303207391
10	SCREW-LEVELING (4)
11	FRONT - OVEN
12	WCI 3205755
13	GUSSET - BKGRD (2)
14	WCI 3201631
15	WCI 3201632
16	BUMPER, COOKTOP (4)
17	WCI 3202082
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 5303292687
21	OVEN LINER
22	BUTTON-PLUG
23	316067902 Frigidaire Oven Rack
26	WIRE, COVER
27	PLATE=GROUND STRAP
28	WCI 3019063
29	WCI 3016281
