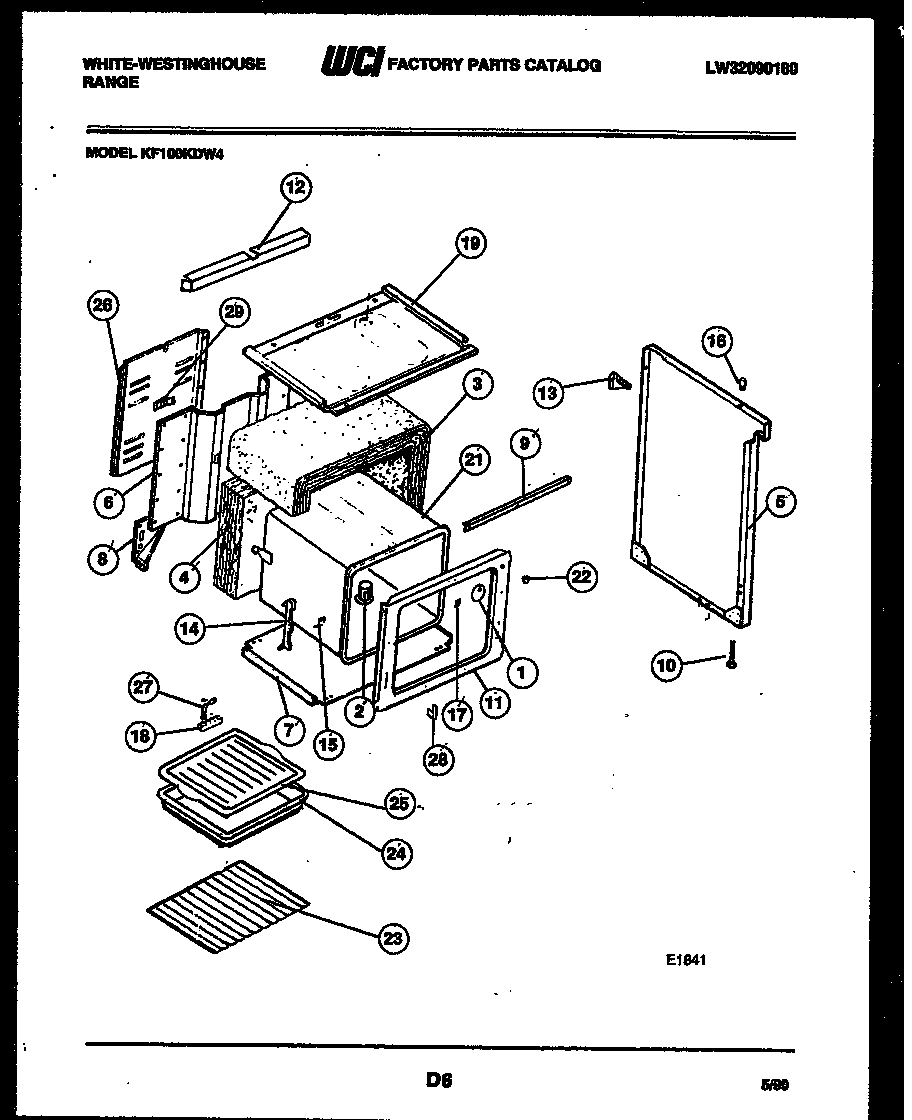

KF100KDH4 06 – BODY PARTS

Products

Position	Product
*29300	WCI 5300009126
*29300	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 3017576
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	INSULATION
5	SIDE PANEL-RH WHEAT
5A	WCI 08012536
6	PANEL-BACK
7	WCI 3206275
8	WCI 3017481
8	WCI 3017482
9	WCI 5303207391
10	LEG, LEVELLER (4)
11	WCI 5303207446
12	WCI 3205755
13	GUSSET – BKGRD (2)
14	WCI 3201631
15	WCI 3201632
16	BUMPER, COOKTOP (4)
17	WCI 3202082
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI K005025704
21	BODY-OVEN
22	BUTTON-PLUG
23	316067902 Frigidaire Oven Rack
24	WCI 3205539
25	GRILLE, BROILER
26	WIRE, COVER
27	STRAP-GROUND
28	WCI 3019063
29	WCI 3016281
