KF100KDW1 04 – DOOR PARTS – Aparts

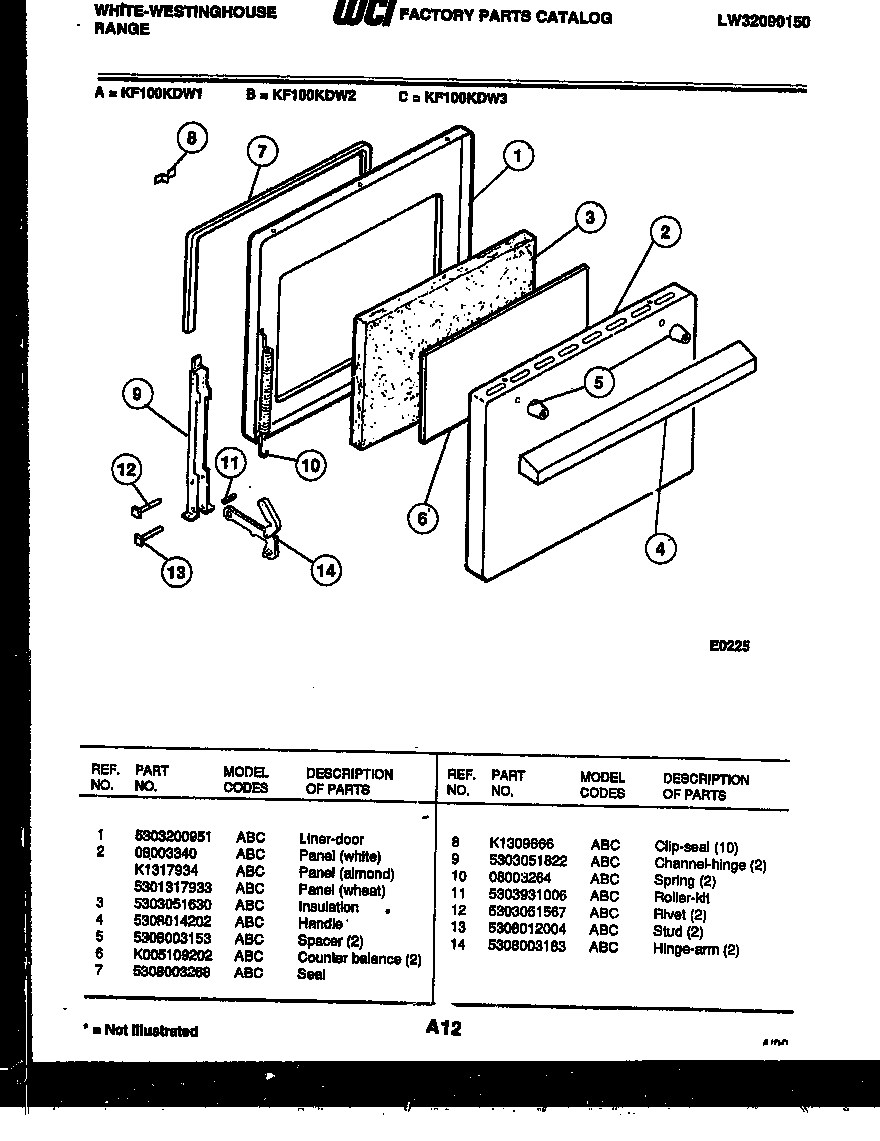

KF100KDW1 04 – DOOR PARTS

Products

Position	Product
1	DOOR LINER
2	WCI 08003340
3	INSULATION
4	WCI 5308014202
5	SPACER (2)
6	COUNTER BALANCE (2)
7	GASKET-OVEN DOOR
8	WCI K1309666
9	CHANNEL (2)
10	WCI 08003264
11	CHANNEL, LH
12	WCI 5303051567
13	AXLE - HINGE (2)
14	DOOR HINGE ARM
