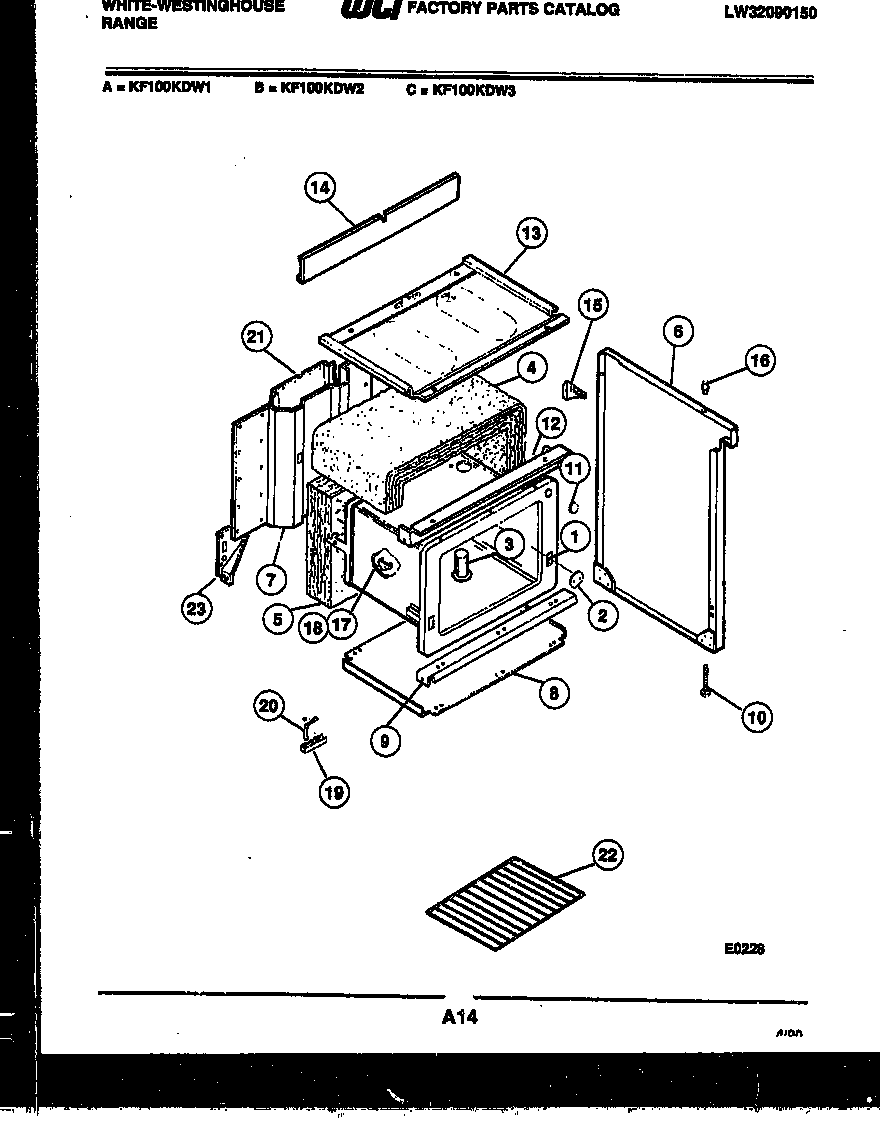

KF100KDW2 06 – BODY PARTS

Products

Position	Product
1	WCI 3204607
2	WCI 3017576
3	WCI 08012541
4	INSULATION – OVEN WRAP
5	INSULATION
6A	SIDE PANEL, RH WHITE
6	SIDE PANEL, LH WHITE
7	WCI 3017535
8	WCI 3017394
9	CHANNEL-OVEN SPRT.
10	SCREW-LEVELING (4)
11	BUTTON-PLUG
12	CHANNEL – OVEN SUPPORT LOWER
13	WCI K005025704
14	WCI K5287902
15	GUSSET – BKGRD (2)
16	BUMPER, COOKTOP (4)
17	BRACKET-THERMOSTAT BULB
18	WCI 08014181
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	WIRE, COVER
22	316067902 Frigidaire Oven Rack
23	WCI 3017481
23A	WCI 3017482
