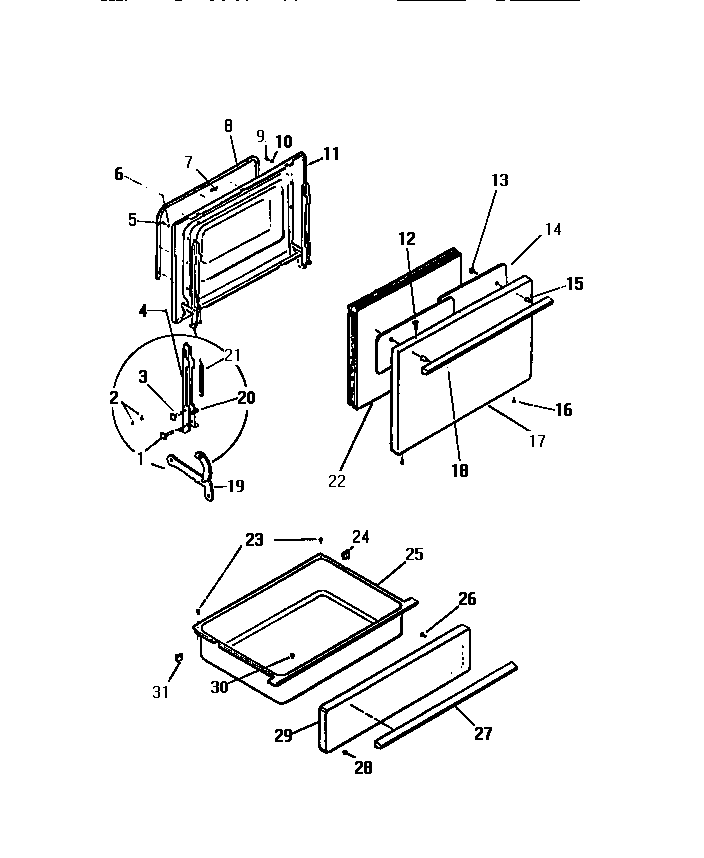

KF200GDH1 03 – DOOR & DRAWER

Products

Position	Product
1	AXLE
3	RIVET
4	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
7	WCI K1309686
8	GASKET (WITH CLIPS)
10	WASHER, PADDED
11	WCI K1317740
13	SCREW ( 2 REQ )
14	WCI K5109202
15	SPACER (2)
16	WCI K1164550
17	WCI K1317933
19	ARM ASSY.
20	WCI K167752
21	SPRING (2)
22	WCI K5370601
25	DRAWER
27	HANDLE – DRAWER (CHROME)
28	5303013272 Frigidaire Oven Nut
29	WCI K1325484
30	SCREW
31	GUIDE
