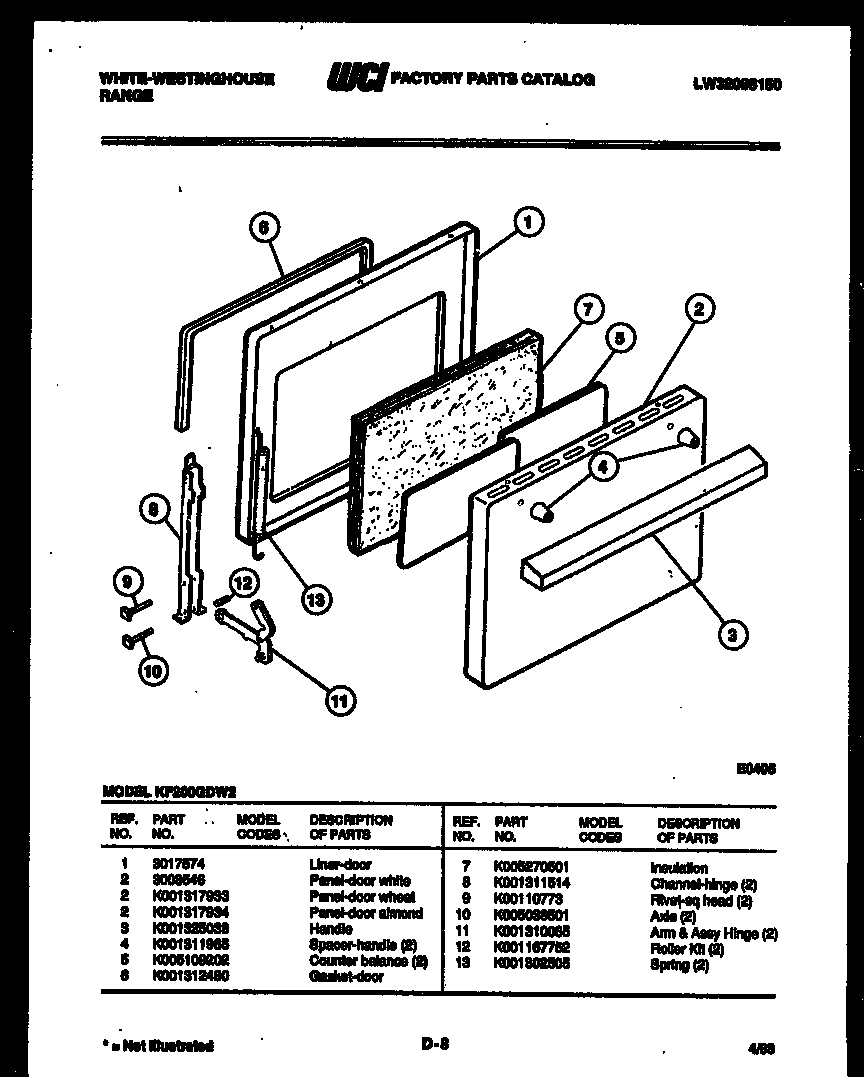

KF200GDH2 03 – DOOR PARTS – Aparts

KF200GDH2 03 – DOOR PARTS

Products

Position	Product
1	DOOR LINER
2	WCI K001317933
3	WCI K001325038
4	SPACER-HANDLE (2)
5	COUNTER BALANCE (2)
6	GASKET-DOOR
7	WCI K005270501
8	CHANNEL (2)
9	WCI K00110773
10	AXLE-HINGE (2)
11	HINGE ARM ASSY (2)
12	ROLLER KIT (2)
13	DOOR SPRING
