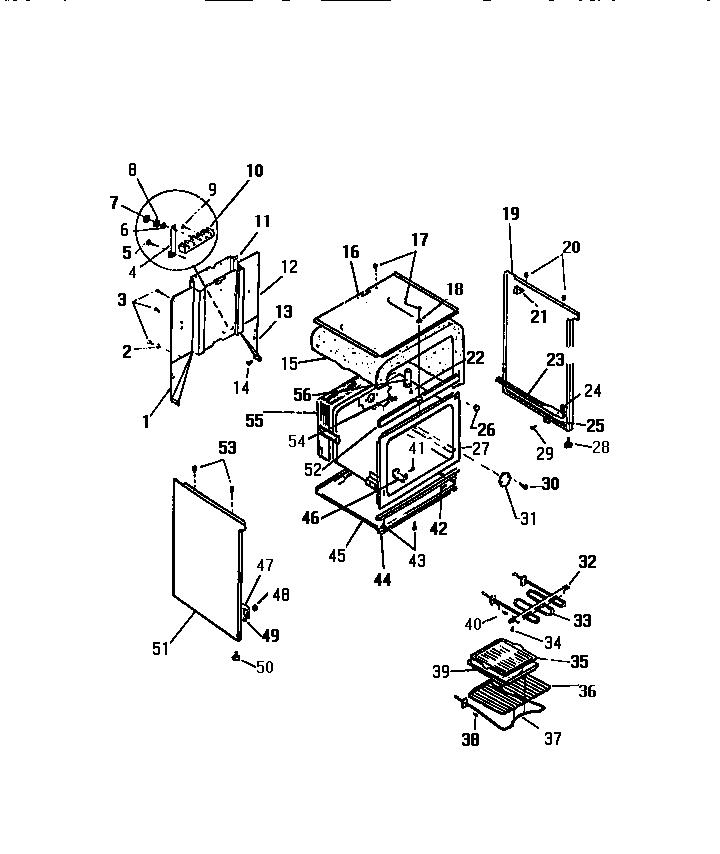

KF200GDW1 04 – BODY, SIDE PANELS

Products

Position	Product
1	WCI K1325183
2	WCI Q410505
4	STRAP-GROUND
6	WASHER (6)
7	WCI Q401002
8	WCI Q500411
10	TERMINAL BLOCK
11	COVER, WIRE
12	BACK
13	WCI K1325182
15	INSULATION, WRAP
16	WCI K5025704
18	WASHER, PADDED
19	WCI K1325223
21	WCI KK1315230
22	SCREW
23	RAIL, DWR., RH
26	PLUG-BUTTON 3/4“
27	WCI K1325537
29	WCI K1164589
31	WCI K1325524
32	HANGER
33	5303051516 Frigidaire Broil Element
35	WCI K1303481
36	RACK (2)
37	5303051519 Frigidaire Oven 2600W Bake Element
39	WCI K1303482
41	08002868 Frigidaire 0 Screw Assembly
42	SCREW
44	CHANNEL, OV. SUPT.
45	PANEL, BTM
46	BRACKET THERM. BULB
47	RAIL, DWR, LH
48	GUIDE
49	SPACER, RAIL
50	WCI Q13325
51	WCI K1325224
52	CHANNEL, OV SUPT.
53	WCI K1315013
55	INSULATION, BACK
56	WCI K1315196
