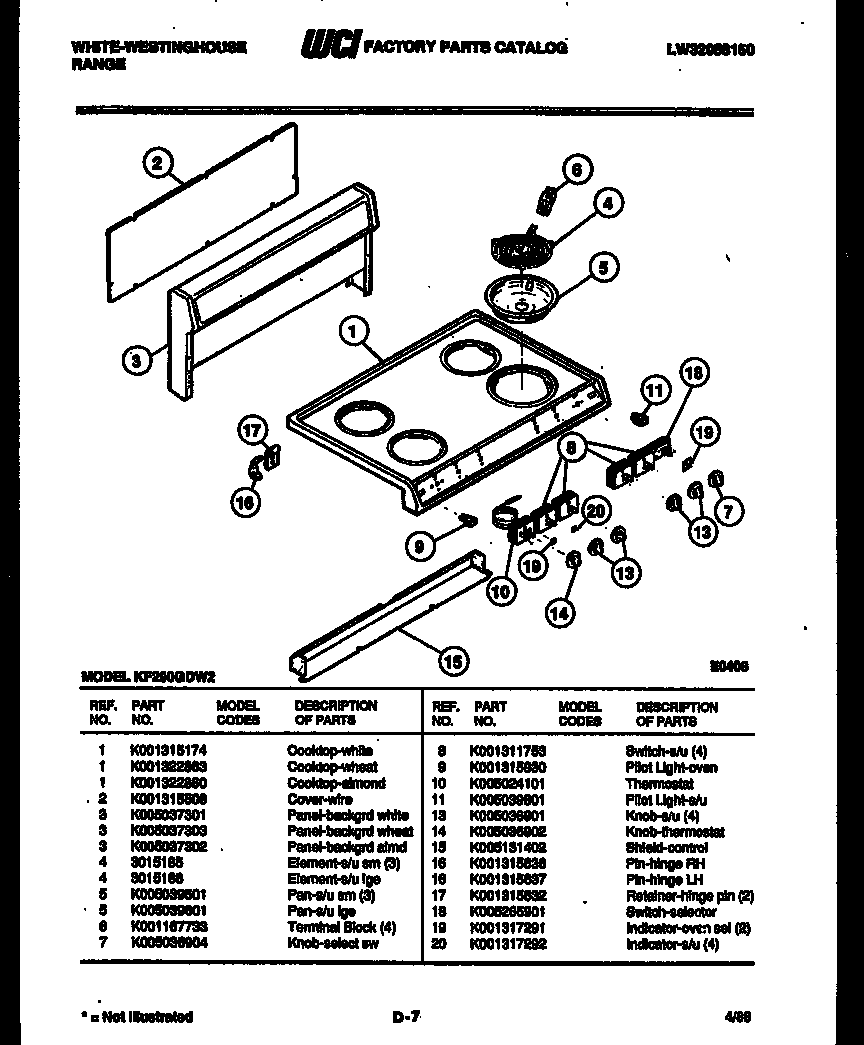

KF200GDW2 02 – BACKGUARD AND COOKTOP PARTS

KF200GDW2 02 – BACKGUARD AND COOKTOP PARTS

Written by

in

KF200GDW2 02 – BACKGUARD AND COOKTOP PARTS

Products

PositionProduct
1WCI K001315174
2WCI K001315508
3WCI K005037301
4318372210 Frigidaire Oven Range 6" 1250W Surface Element
4316442300 Frigidaire Oven 2100W Coil Element 8
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
65303935058 Frigidaire Oven Burner Receptacle Kit
7WCI K005036904
8SWITCH-SURFACE UNIT (4)
9WCI K001315930
10WCI K005024101
11WCI K005039801
13WCI K005036901
14WCI K005036902
15WCI K005131402
16WCI K001315637
16WCI K001315636
17RETAINER-HINGE PIN (2)
18WCI K005265901
19WCI K001317291
20WCI K001317292
