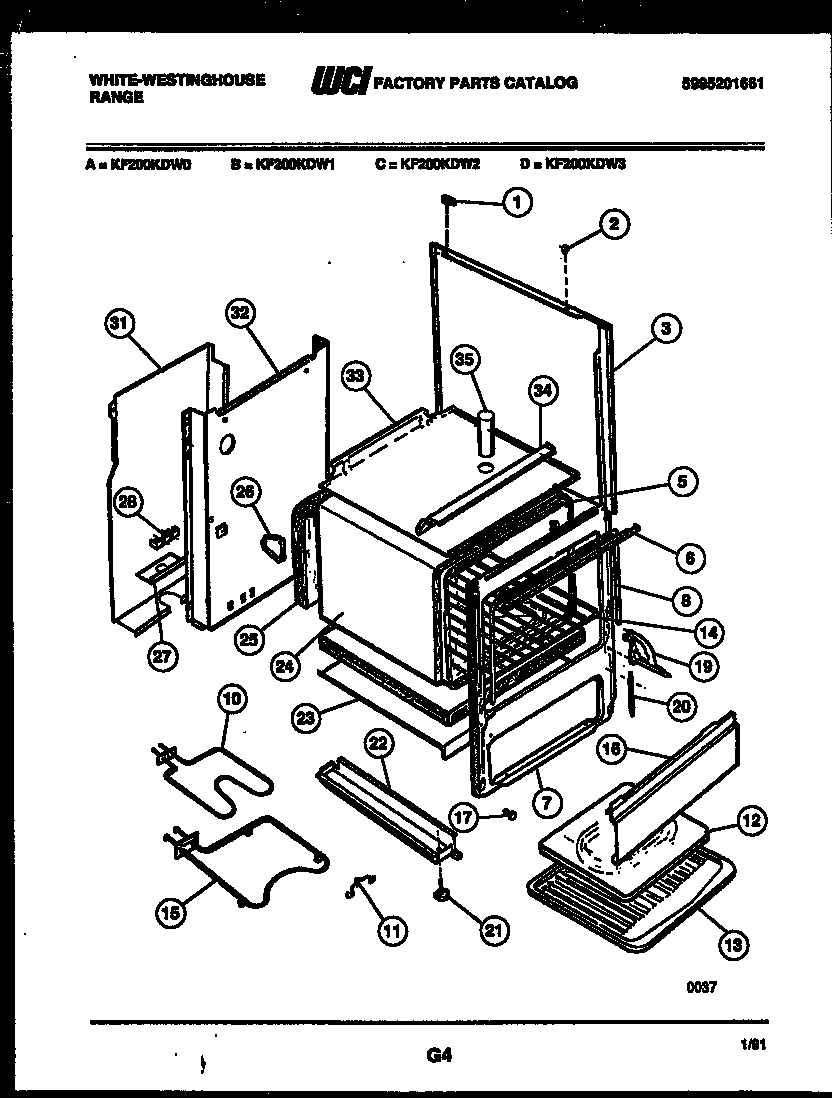

KF200KDD1 04 – BODY PARTS

Products

Position	Product
*77039	ANTI-TIP KIT
*77040	WCI 19100210113
*77037	WCI 5300009126
*77035	PLATE=GROUND STRAP
1	WCI 5303016129
2	GROMMET
3	PANEL BODYSIDE-ALMD
5B	WCI 51152005
5C	WCI 51120005
5A	WCI 3051087
5	OVEN LINER SIDE RH
5D	WCI 51102007
6	SUPPORT CONTROL PNL
7	WCI 5303207299
8	DOOR SEAL
10	WCI 5303009293
11	SUPPORT-BROIL ELMNT
12	WCI 3131021
13	BROILER-PAN
14	OVEN RACK (2)
14	WCI 5303015184
15	WCI 5303017027
16	WCI 3012964
17	BOLT-SHOULDER (2)
19A	318348801 Frigidaire Oven Left Side Door Hinge
19	HINGE ASSY-RH
20	SPRING-OVEN DR (2)
21	WCI 3051080
22	RAIL-BASE
23	WCI 08013990
24	WCI 3017029
25	WCI 3017028
26	SUPPORT-REAR OVN (2)
27	SUPPORT-CONDUIT
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	COVER-MAIN BACK
32	WCI 3015724
32	WCI 3205592
33	WCI 11088003
34	WCI 3017034
35	TUBE-VENT
