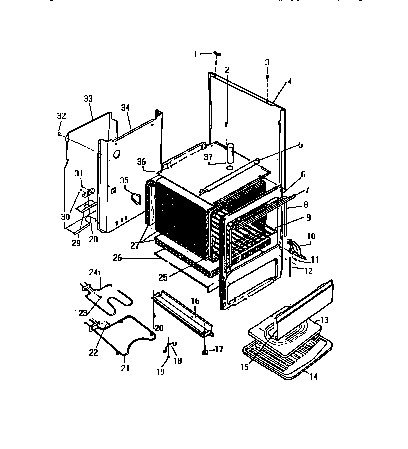

KF201HDF0 04 – BODY, SIDE PANELS

Products

Position	Product
1	WCI Q301831
3	WCI AP172002
4	BOTTOM PANEL, LH & RH (COFFEE)
5	WCI Q301835
6	WCI Q301834
7	SUPPORT-CONTROL PNL
8	WCI AP326050
9	WCI AP301042
10	WCI A96068000
10A	318348801 Frigidaire Oven Left Side Door Hinge
12	WCI AP339053
13	WCI A43001000
14	WCI A53008000
15	WCI Q301841
16	BASE RAIL
17	WCI AP059009
18	WCI AP347006
21	ELEMENT-BAKE
23	5304500008 Frigidaire Oven Screw
24	WCI AP141040
25D	WCI Q301851
25	WCI Q301847
25A	WCI Q301848
25B	WCI Q301849
25C	WCI Q301850
26	WCI A53019000
27	WCI Q134234
28	TERMINAL BLOCK
29	WCI A74058000
30	WCI Q401002
31	WCI Q505556
32	WCI AP051056
33	WCI Q301836
34	WCI Q301837
35	WCI A74060000
36	WCI Q301833
37	WCI A84024000
