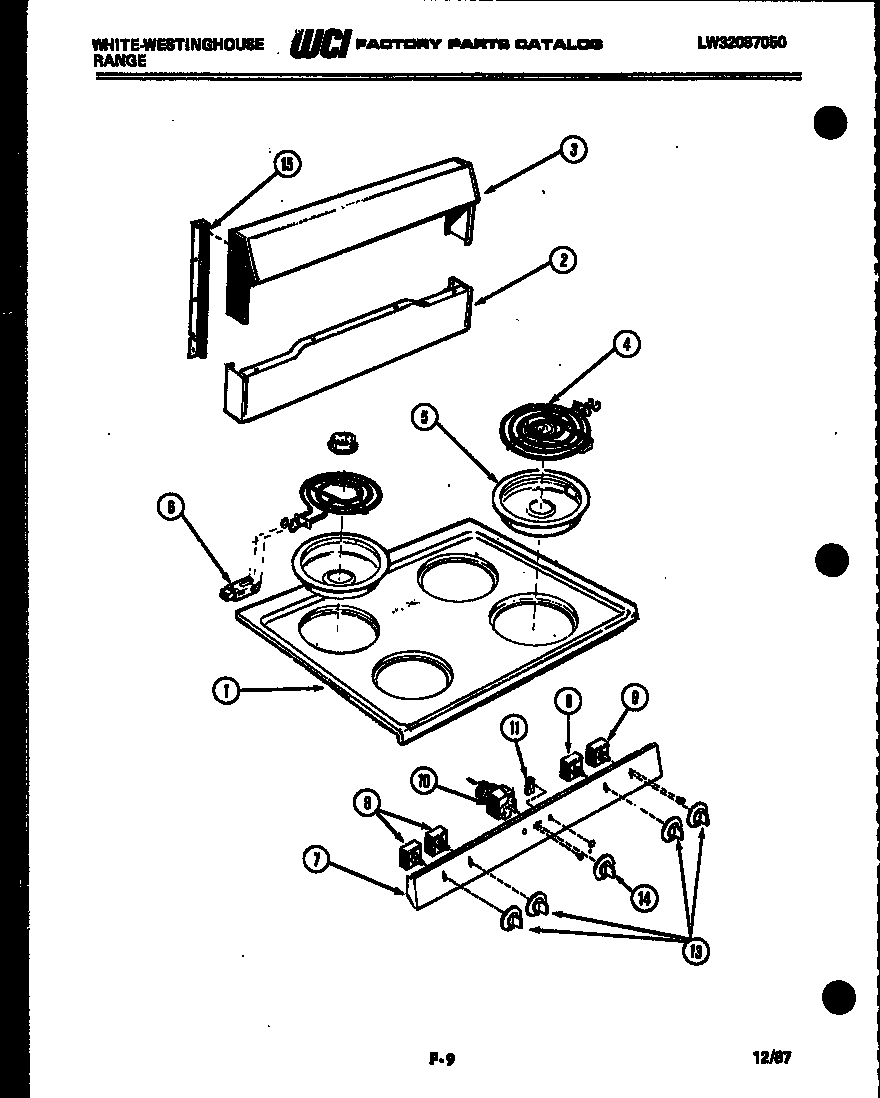

KF201HDW2 02 – COOKTOP PARTS

Products

Position	Product
1	WCI 3014541
2	WCI 3016212
3	BACKGUARD ASSY
4	318372210 Frigidaire Oven Range 6" 1250W Surface Element
4	316442300 Frigidaire Oven 2100W Coil Element 8
5	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
6	5303935058 Frigidaire Oven Burner Receptacle Kit
7	SWITCH-PANEL WHITE
8	5303935086 Frigidaire Oven Top Burner Switch Kit
10	WCI 3015184
11	INDICATOR LIGHT
12	KNOB-TOP ELEMENT (4)
14	WCI 3051030
15	BRACE RH & LH
16	MEDALLION
