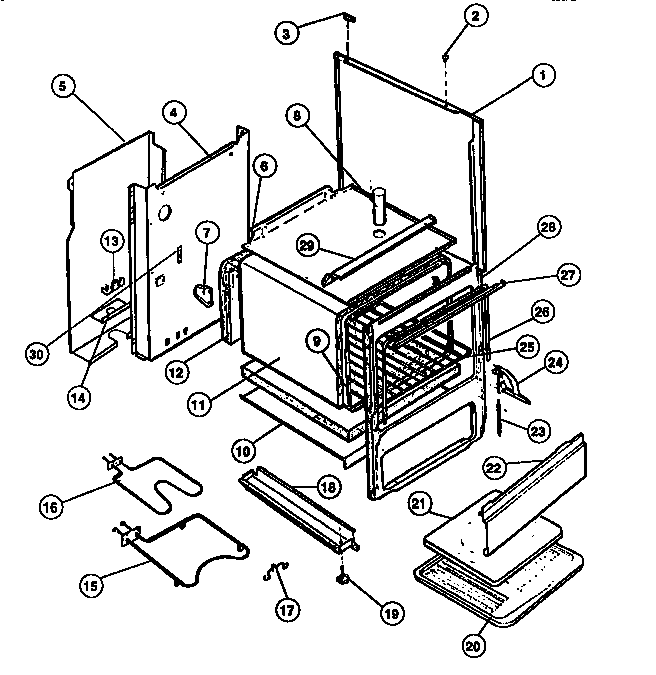

KF201HDW4 03 – BODY

Products

Position	Product
*93641	CLIP-CAPILLARY (NON-ILLUSTRATED)
*93640	ANTI-TIP KIT
1	PANEL-BODYSIDE (WHITE) (2)
2	GROMMET
3	WCI 3016219
4	BACK MAIN
5	COVER-WIRE
6	BURNER BOX-BTM
7	SUPPORT-REAR OVN (2)
8	TUBE-VENT
9D	LINER-OVEN BACK
9	OVEN LINER SIDE RH
9A	WCI 3051087
9C	LINER-OVEN BOTTOM
9B	LINER, OVEN TOP
10	PAN BOTTOM
11	INSUL WRAP
12	INSUL BACK
13	5304409888 Frigidaire Oven Terminal Block with Hardware
14	SUPPORT-CONDUIT
15	WCI 3051076
16	WCI 3051071
17	WCI 3009445
18	BASE RAIL
19	WCI 3051080
20	BROILER-PAN
21	WCI 3131021
22	PANEL-FALSE, WHITE
23	SPRING DOOR (2)
24	WCI 3204670
24A	318348801 Frigidaire Oven Left Side Door Hinge
25	WCI 3016158
26	SEAL – OVEN DOOR
27	SUPPORT-CONTROL PNL
28	WCI 5303208237
29	SHIELD
30	STRAP-GROUND
