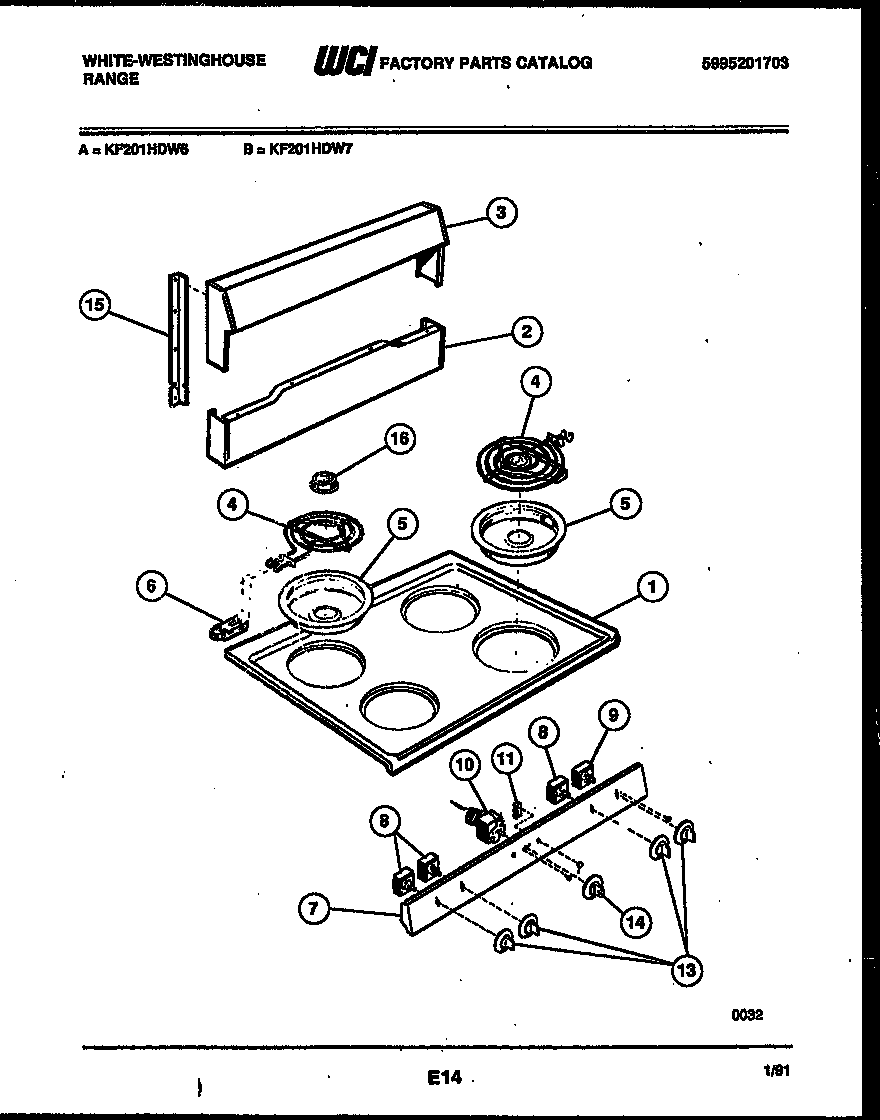

KF201HDW7 02 – BACKGUARD AND COOKTOP PARTS

KF201HDW7 02 – BACKGUARD AND COOKTOP PARTS

Written by

in

KF201HDW7 02 – BACKGUARD AND COOKTOP PARTS

Products

PositionProduct
1MAIN TOP-WHITE
2WCI 5303016212
3BACKGUARD-PNL, LWR
4318372210 Frigidaire Oven Range 6" 1250W Surface Element
4A316442300 Frigidaire Oven 2100W Coil Element 8
5A316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
65303935058 Frigidaire Oven Burner Receptacle Kit
7SWITCH-PANEL WHITE
95303935086 Frigidaire Oven Top Burner Switch Kit
10WCI 5303015184
11INDICATOR LIGHT
13KNOB-SURFACE (4)
14THERMOSTAT KNOB
15BRACE (2)
16WCI 5308067828
