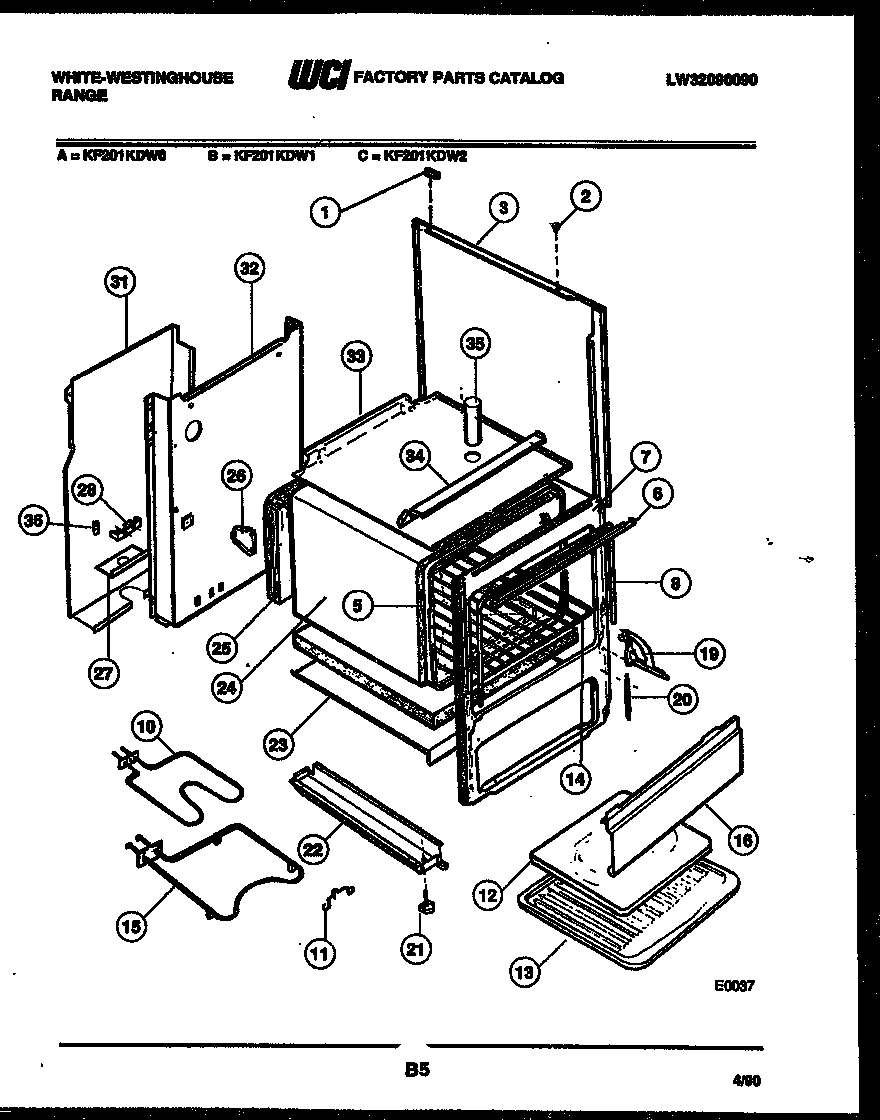

KF201KDD1 04 – BODY PARTS

Products

Position	Product
*10139	CLIP-CAPILLARY (NON-ILLUSTRATED)
*10139	ANTI-TIP KIT
1	GROMMET MAIN TOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
3	WCI 08014019
5A	WCI 3051087
5	OVEN LINER SIDE RH
5B	LINER, OVEN TOP
5D	LINER-OVEN BOTTOM
5C	LINER-OVEN BACK
6	SUPPORT-CONTROL PNL
7	WCI 5303208237
8	SEAL - OVEN DOOR
10	WCI 3051071
11	WCI 3009445
12	WCI 3131021
13	BROILER-PAN
14	WCI 3016158
15	WCI 3051076
16	WCI 3200531
19	WCI 3204670
19A	318348801 Frigidaire Oven Left Side Door Hinge
20	SPRING DOOR (2)
21	WCI 3051080
22	BASE RAIL
23	PAN BOTTOM
24	INSUL WRAP
25	INSUL BACK
26	SUPPORT-REAR OVN (2)
27	SUPPORT-CONDUIT
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	COVER-WIRE
31	COVER-WIRE
32	BACK MAIN
33	BURNER BOX-BTM
34	SHIELD
35	TUBE-VENT
36	STRAP-GROUND
