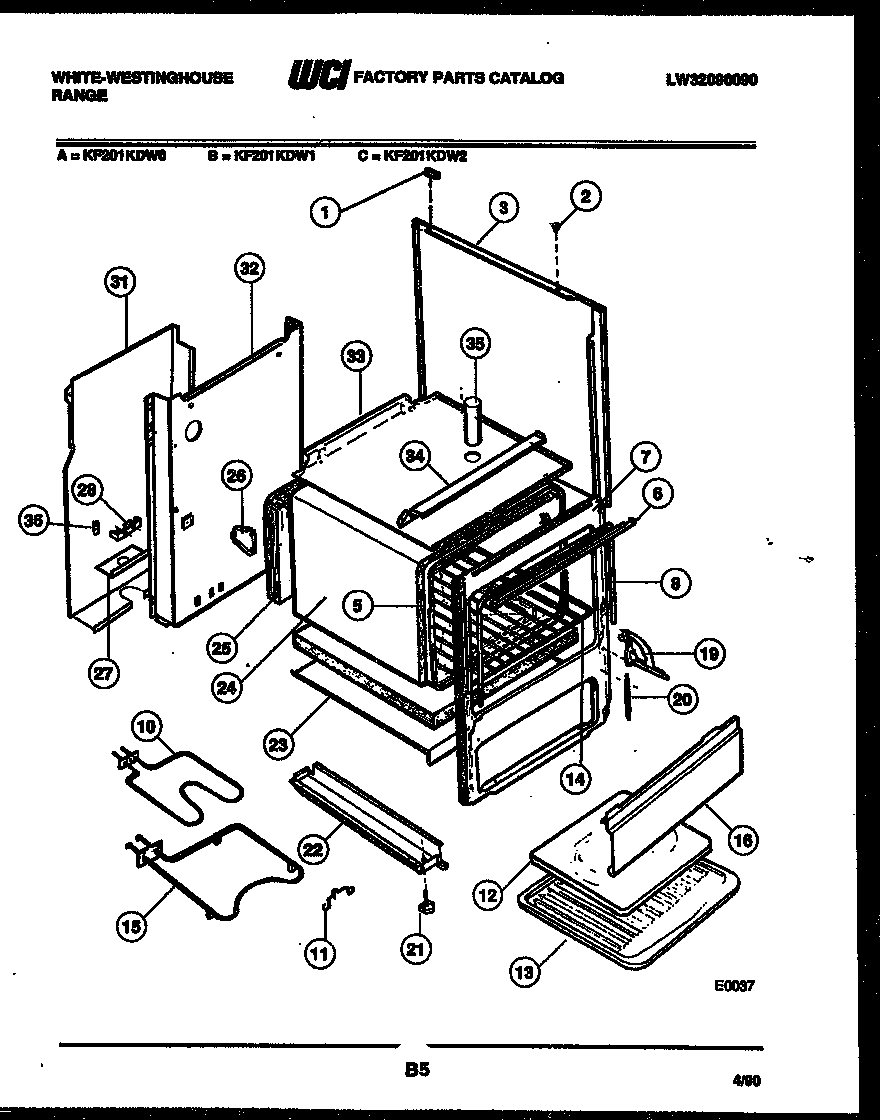

KF201KDD2 04 – BODY PARTS

Products

Position	Product
*10139	CLIP-CAPILLARY (NON-ILLUSTRATED)
*10139	ANTI-TIP KIT
1	GROMMET MAIN TOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
3	WCI 08014019
5D	WCI 3017720
5C	WCI 3017710
5B	WCI 3017708
5A	LINER-LEFTSIDE
5	LINER-RIGHT SIDE
6	SUPPORT-CONTROL PNL
7	FRAME-FRONT
8	SEAL - OVEN DOOR
10	WCI 3051071
11	WCI 3009445
12	BROILER GRID
13	WCI 3016973
14	WCI 3016158
15	WCI 3051076
16	WCI 3200531
19	WCI 3204670
19A	318348801 Frigidaire Oven Left Side Door Hinge
20	SPRING DOOR (2)
21	WCI 3051080
22	BASE RAIL
23	PAN BOTTOM
24	INSUL WRAP
25	INSUL BACK
26	SUPPORT-REAR OVN (2)
27	SUPPORT-CONDUIT
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	COVER-WIRE
31	COVER-WIRE
32	BACK MAIN
33	BURNER BOX-BTM
34	SHIELD
35	TUBE-VENT
36	STRAP-GROUND
