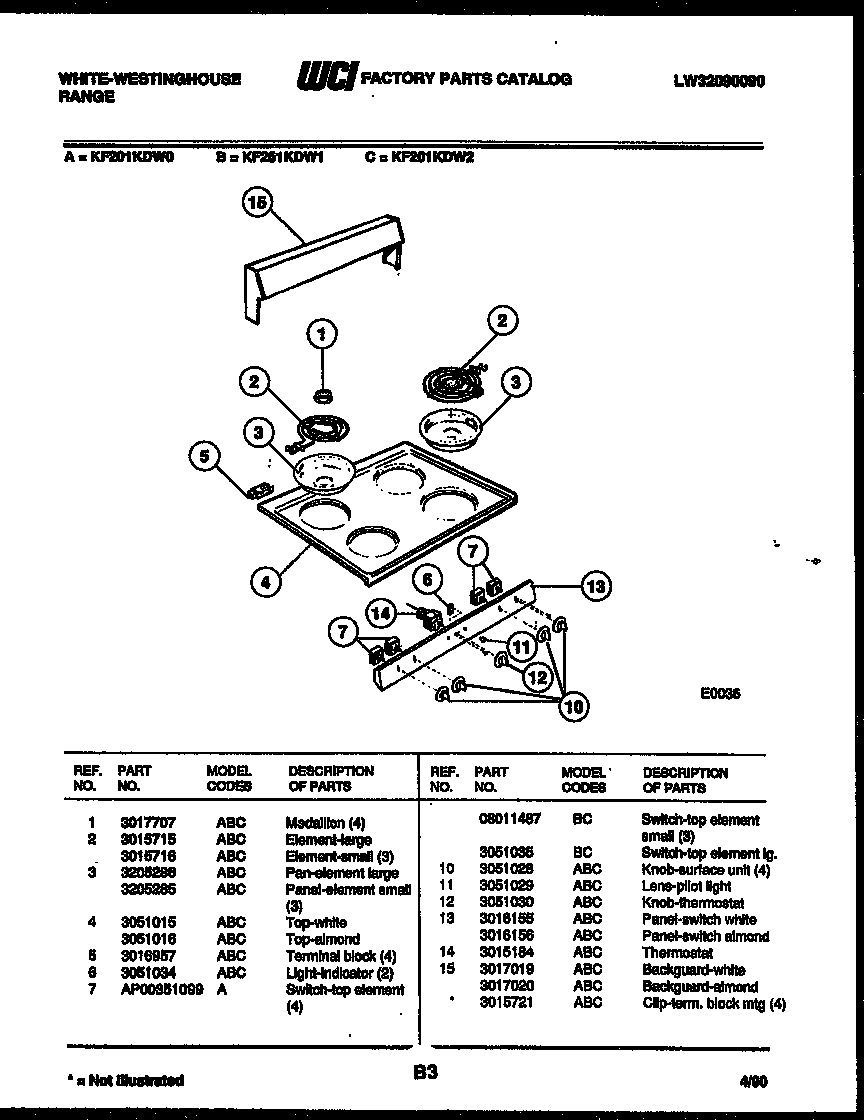

KF201KDW0 02 – BACKGUARD AND COOKTOP PARTS

KF201KDW0 02 – BACKGUARD AND COOKTOP PARTS

Written by

in

KF201KDW0 02 – BACKGUARD AND COOKTOP PARTS

Products

PositionProduct
*10130WCI 3015721
1WCI 3017707
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4TOP-ALMOND
55303935058 Frigidaire Oven Burner Receptacle Kit
6INDICATOR LIGHT
75303935086 Frigidaire Oven Top Burner Switch Kit
10KNOB-TOP ELEMENT (4)
11JEWELL INDICATOR LIGHT
12WCI 3051030
13SWITCH-PANEL WHITE
14WCI 3015184
15BACKGUARD PNL WHITE
