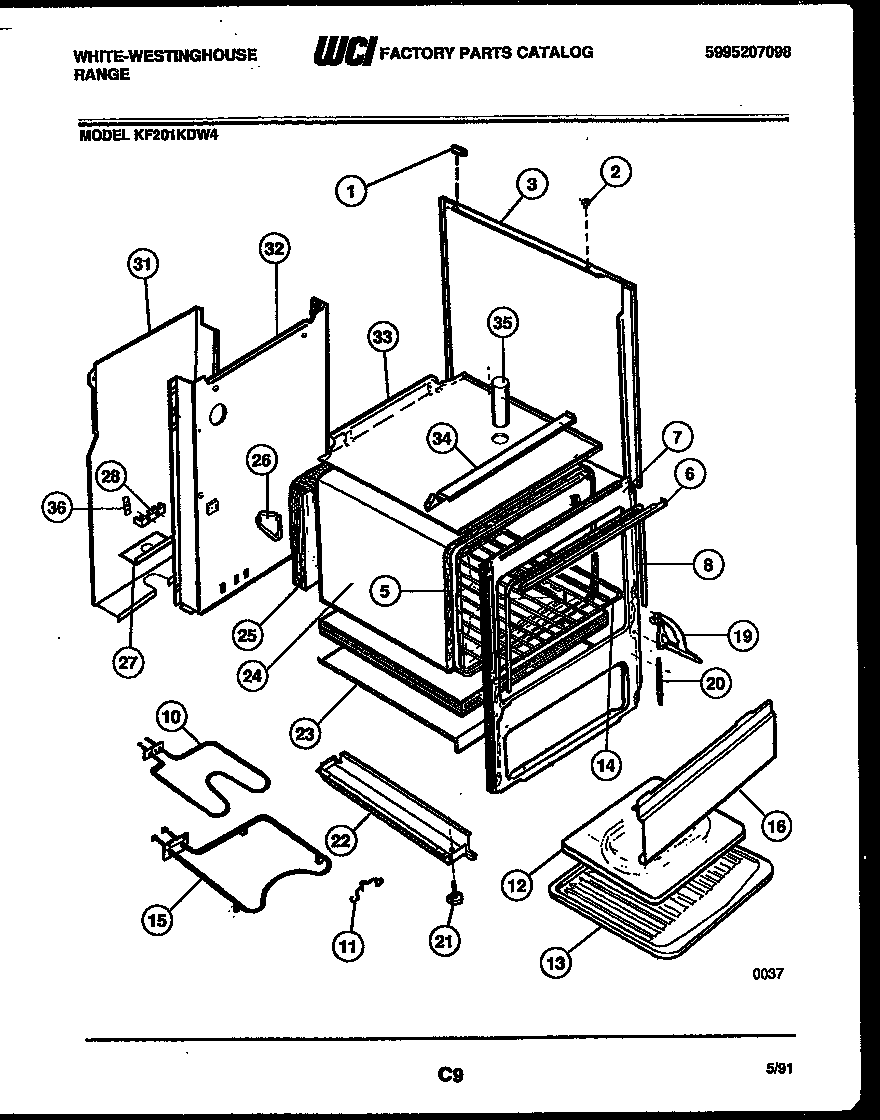

KF201KDW4 04 – BODY PARTS

Products

Position	Product
*46997	WCI 5303210891
*46996	ANTI-TIP KIT
*46997	WCI 5303210892
*46997	WCI 19100210113
*46996	WCI 5300009126
1	GROMMET-MAINTOP
3	BODYSIDE PANEL-WHITE (2)
5A	LINER-LEFTSIDE
5	LINER-RIGHT SIDE
5B	WCI 3017708
5C	WCI 3017710
5D	WCI 3017720
6	SUPPORT-CONTROL PNL
7	FRAME-FRONT
8	SEAL OVEN DOOR
10	WCI 3051071
11	SUPPORT-BROIL ELMNT
12	WCI 5303017712
13	WCI 5303016973
14	WCI 3016158
15	WCI 5303051076
16	PANEL-FALSE, WHITE
19	HINGE ASSY-RH
19A	318348801 Frigidaire Oven Left Side Door Hinge
20	SPRING DOOR (2)
22	RAIL-BASE, LH
22	Rail,base ,RH
23	PAN BOTTOM
24	INSUL WRAP
25	INSUL BACK
26	SUPPORT-REAR OVN (2)
27	SUPPORT-CONDUIT
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	COVER-WIRE
32	BACK MAIN
33	BURNER BOX-BTM
34	SHIELD
35	TUBE-VENT
36	PLATE=GROUND STRAP
