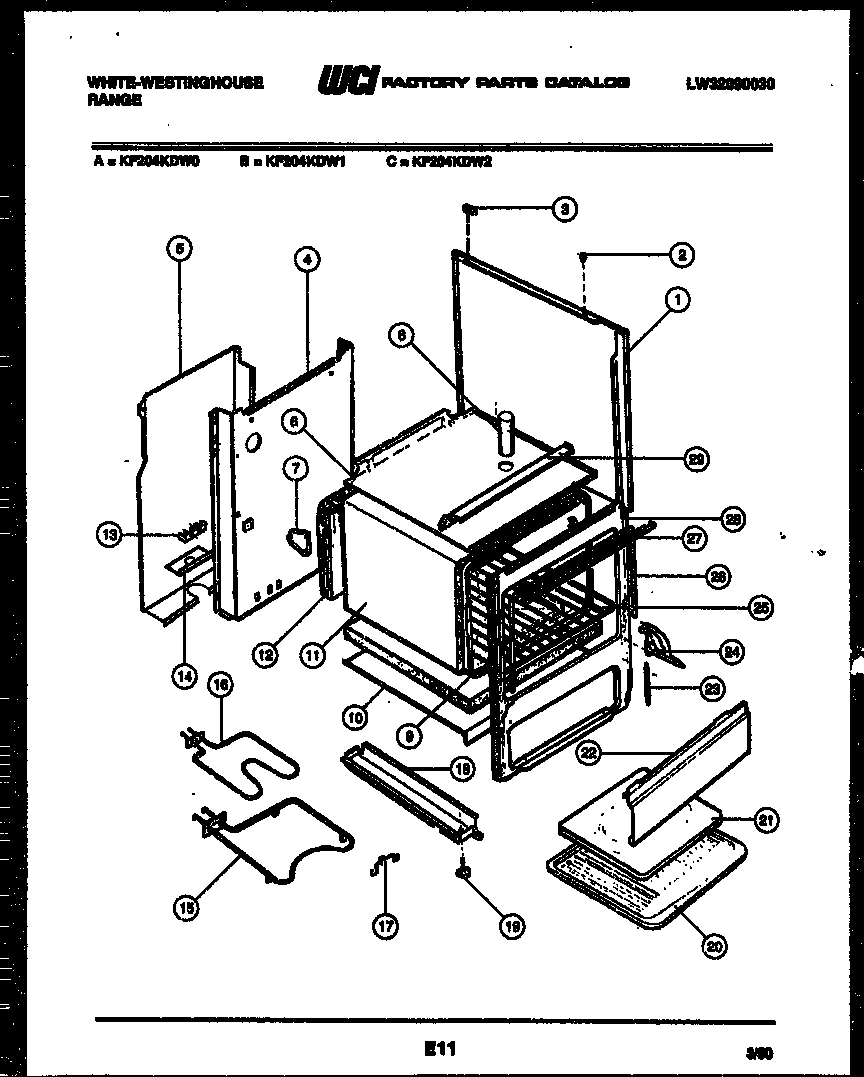

KF204KDW0 03 – BODY PARTS

Products

Position	Product
*67045	STRAP-GROUND
*67045	CLIP-CAPILLARY (NON-ILLUSTRATED)
1	PANEL-BODYSIDE ALMOND (2)
1	PANEL-BODYSIDE (WHITE) (2)
2	GROMMET
3	GROMMET MAIN TOP
4	WCI 3016944
5	COVER-WIRE
6	BURNER BOX BOTTOM
7	SUPPORT-REAR OVN (2)
8	TUBE-VENT
9D	WCI 3016940
9	OVEN LINER SIDE RH
9A	WCI 3051087
9B	WCI 3016941
9C	WCI 3016939
10	PAN-INSULATION
11	WCI 3016946
12	WCI 3016947
13	5304409888 Frigidaire Oven Terminal Block with Hardware
14	SUPPORT-CONDULT
15	WCI 3009292
16	WCI 3009293
17	WCI 3009445
18	BASE RAIL
19	WCI 3051080
20	BROILER-PAN
21	WCI 3131021
22	WCI 35048000
23	SPRING DOOR (2)
24	WCI 3204670
24A	318348801 Frigidaire Oven Left Side Door Hinge
25	WCI 3016128
26	SEAL – DOOR
27	SUPPORT-CONTROL PANEL
28	WCI 3016942
29	SHIELD SWITCH
