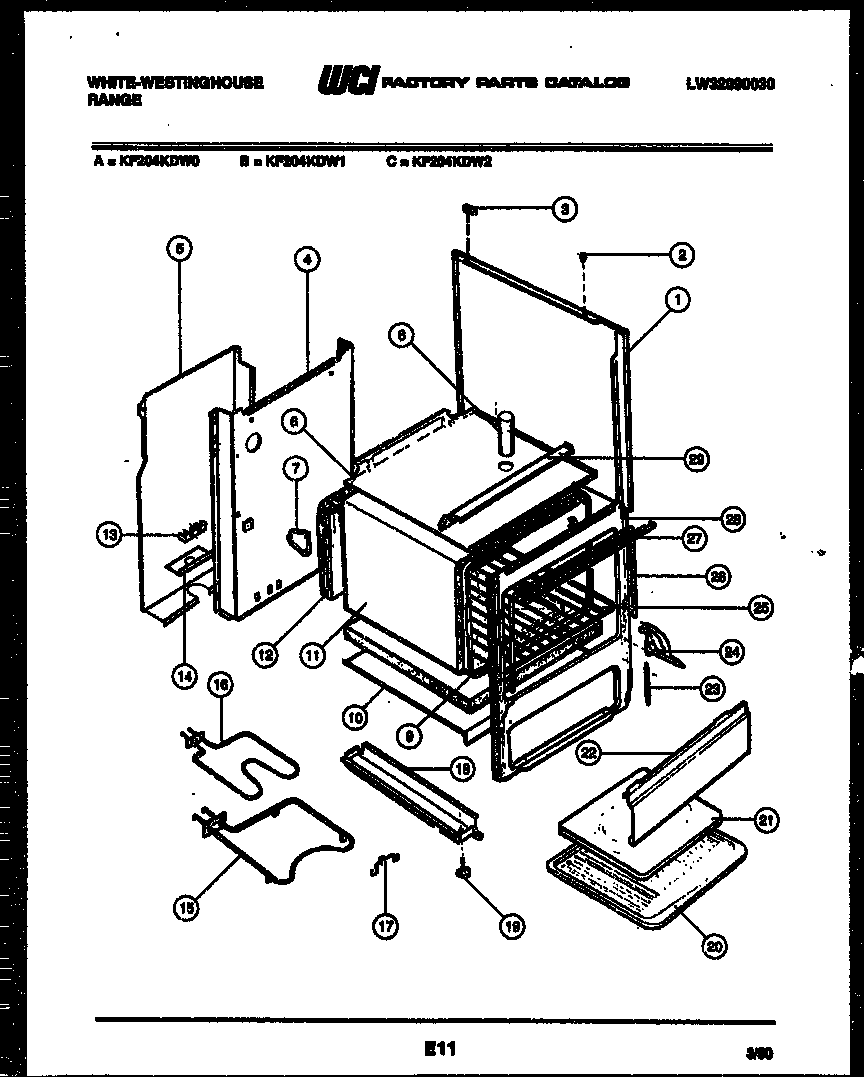

KF204KDW2 03 – BODY PARTS

Products

Position	Product
*67045	STRAP-GROUND
*67047	ANTI-TIP KIT
*67045	CLIP-CAPILLARY (NON-ILLUSTRATED)
1	PANEL-BODYSIDE (WHITE) (2)
1	PANEL-BODYSIDE ALMOND (2)
2	GROMMET
3	GROMMET MAIN TOP
4	MAIN BACK
5	COVER-WIRE
6	BURNER BOX BOTTOM
7	SUPPORT-REAR OVN (2)
8	TUBE-VENT
9A	LINER-LEFTSIDE
9C	LINER-OVEN BTM
9D	WCI 3017598
9	LINER-RIGHT SIDE
9B	WCI 3017600
10	PAN-INSULATION
11	WCI 3016946
12	WCI 3016947
13	5304409888 Frigidaire Oven Terminal Block with Hardware
14	SUPPORT-CONDUIT
15	WCI 3009292
16	WCI 3009293
17	WCI 3009445
18	BASE RAIL
19	WCI 3051080
20	WCI 3016973
21	BROILER GRID
22	WCI 35048000
23	SPRING DOOR (2)
24	WCI 3204670
24A	318348801 Frigidaire Oven Left Side Door Hinge
25	WCI 3016128
26	SEAL – DOOR
27	SUPPORT-CONTROL PANEL
28	FRAME-FRONT
29	SHIELD SWITCH
