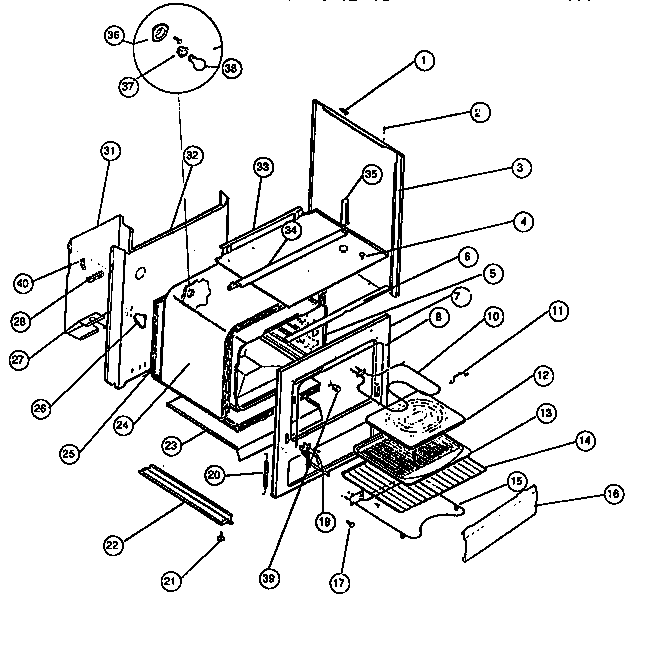

KF211KDD0 04 – BODY

Products

Position	Product
1	GROMMET MAIN TOP
2	GROMMET
3A	WCI 08014019
5	OVEN LINER SIDE RH
5C	LINER-BACK
5D	LINER-OVEN BOTTOM
5B	LINER, OVEN TOP
6	SUPPORT-CONTROL PNL
7	WCI 3017018
8	SEAL – OVEN DOOR
10	WCI 3051071
11	WCI 3009445
12	WCI 3131021
13	BROILER-PAN
14	WCI 3016158
15	WCI 3051076
16A	WCI 3200531
17	BOLT-SHOULDER (2)
19	WCI 3204670
19A	318348801 Frigidaire Oven Left Side Door Hinge
20	SPRING DOOR (2)
21	WCI 3051080
22	BASE RAIL
23	PAN BOTTOM
24	INSUL WRAP
25	INSUL BACK
26	SUPPORT-REAR OVN (2)
27	SUPPORT-CONDULT
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	WCI Q000301836
32	WCI Q000301837
33	BURNER BOX-BTM
34	SHIELD
35	TUBE-VENT
36	WCI 3009290
37	316116400 Frigidaire Oven Light Socket
38	316538904 Frigidaire Oven Lamp Light
39	WCI 3016982
40	STRAP-GROUND
40A	CLIP-CAPILLARY (NON-ILLUSTRATED)
