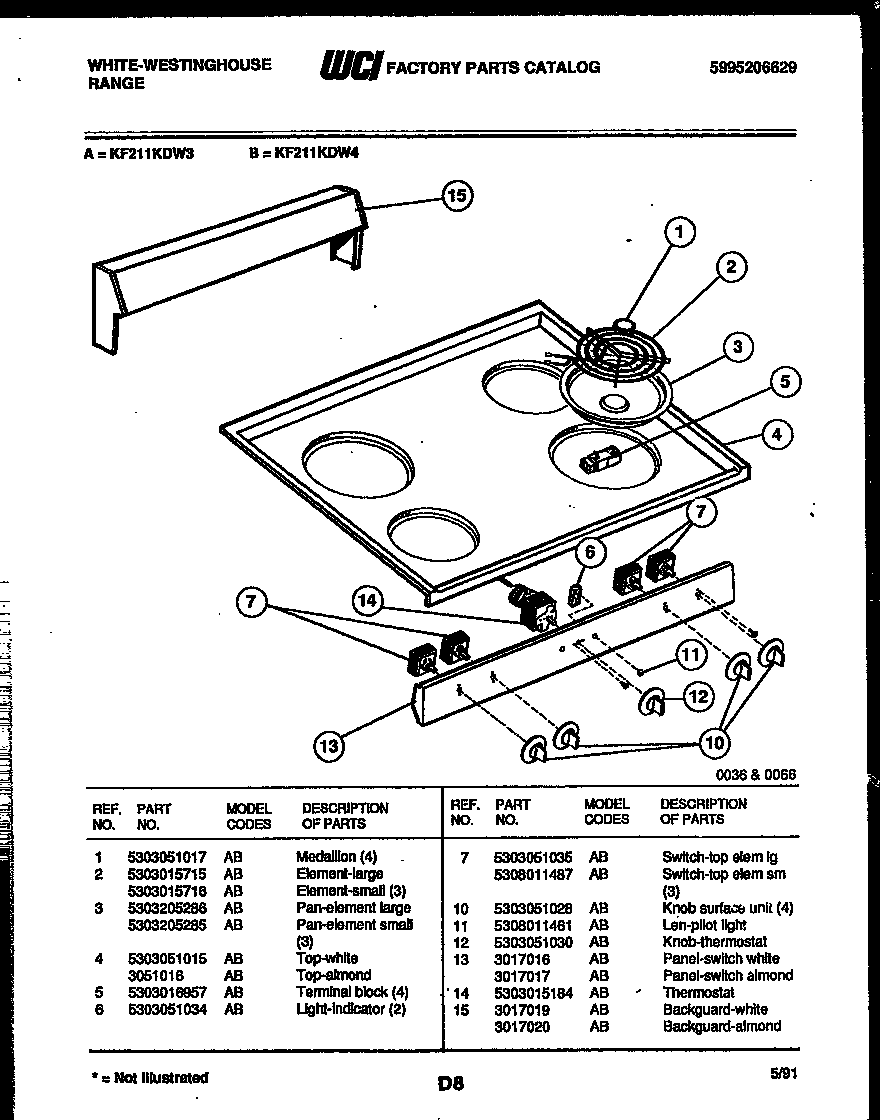

KF211KDD4 02 – BACKGUARD AND COOKTOP PARTS

KF211KDD4 02 – BACKGUARD AND COOKTOP PARTS

Written by

in

KF211KDD4 02 – BACKGUARD AND COOKTOP PARTS

Products

PositionProduct
1WCI 5303051017
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4TOP-ALMOND
55303935058 Frigidaire Oven Burner Receptacle Kit
6INDICATOR LIGHT
75303935086 Frigidaire Oven Top Burner Switch Kit
10KNOB-SURFACE (4)
11LEN-PILOT LIGHT
12THERMOSTAT KNOB
13WCI 3017017
14WCI 5303015184
15BACKGUARD PNL ALMD
