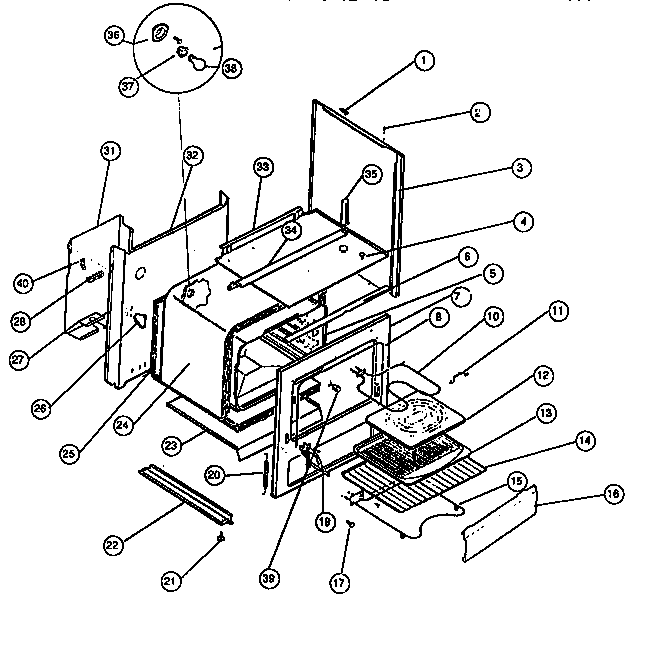

| 1 | GROMMET MAIN TOP |
| 2 | GROMMET |
| 3 | PANEL-BODYSIDE (WHITE) (2) |
| 5 | LINER-RIGHT SIDE |
| 5B | WCI 3017708 |
| 5A | LINER-LEFTSIDE |
| 5D | WCI 3017720 |
| 5A | WCI 3051087 |
| 5C | WCI 12079 |
| 6 | SUPPORT-CONTROL PNL |
| 7 | WCI 5303208239 |
| 8 | SEAL - OVEN DOOR |
| 10 | WCI 3051071 |
| 11 | WCI 3009445 |
| 12 | BROILER GRID |
| 13 | WCI 3016973 |
| 14 | WCI 3016158 |
| 15 | WCI 3051076 |
| 16 | PANEL-FALSE, WHITE |
| 17 | BOLT-SHOULDER (2) |
| 19 | WCI 3204670 |
| 19A | 318348801 Frigidaire Oven Left Side Door Hinge |
| 20 | SPRING DOOR (2) |
| 21 | WCI 3051080 |
| 22 | BASE RAIL |
| 23 | PAN BOTTOM |
| 24 | INSUL WRAP |
| 25 | INSUL BACK |
| 26 | SUPPORT-REAR OVN (2) |
| 27A | SUPPORT-CONDUIT |
| 28 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 31A | COVER-WIRE |
| 32 | BACK MAIN |
| 33 | BURNER BOX-BTM |
| 34 | SHIELD |
| 35 | TUBE-VENT |
| 36 | WCI 3051511 |
| 37 | 316116400 Frigidaire Oven Light Socket |
| 38 | 316538904 Frigidaire Oven Lamp Light |
| 39 | WCI 3016982 |
| 40 | STRAP-GROUND |
| 40B | ANTI-TIP KIT |
| 40A | CLIP-CAPILLARY (NON-ILLUSTRATED) |
