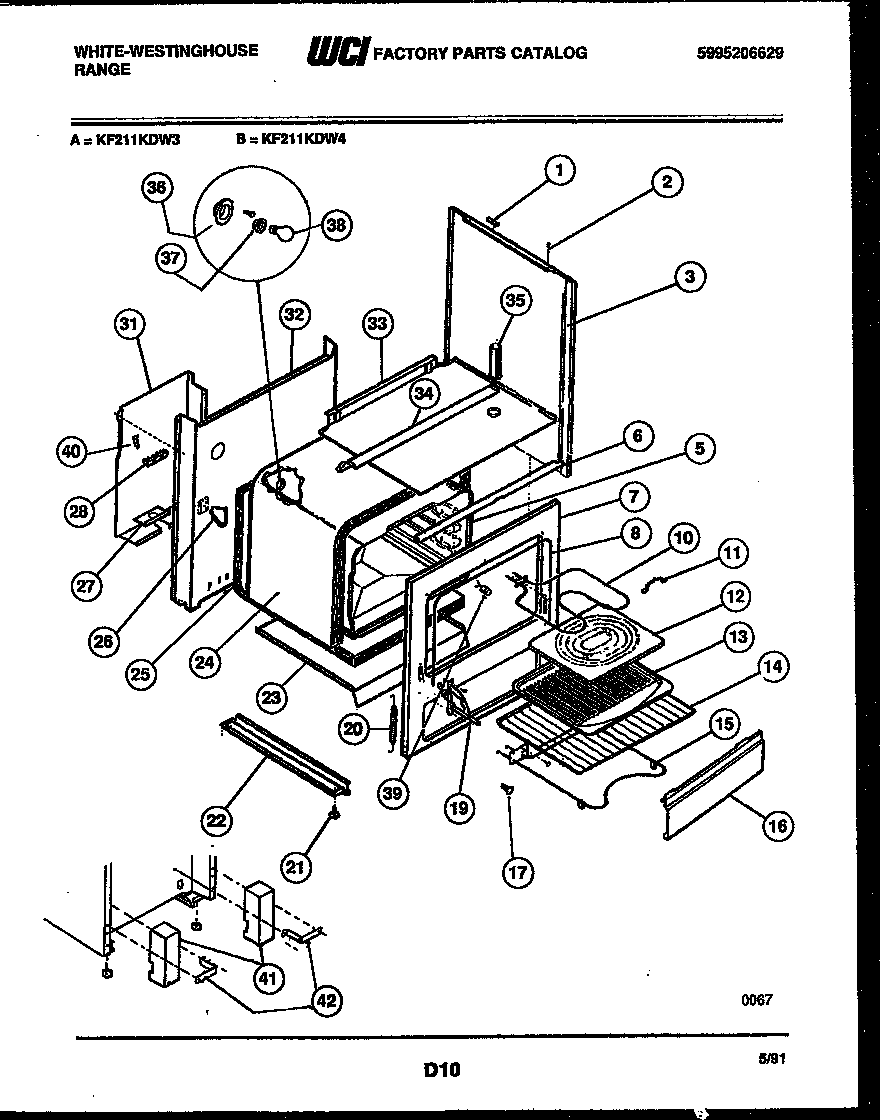

KF211KDW3 04 – BODY PARTS

Products

Position	Product
1	WCI 5303016129
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
5D	WCI 3017720
5B	WCI 3017708
5A	LINER-LEFTSIDE
5	LINER-RIGHT SIDE
5C	WCI 12079
6	SUPPORT-CONTROL PNL
7	WCI 5303208239
8	SEAL OVEN DOOR
10	WCI 3051071
11	SUPPORT-BROIL ELMNT
12	WCI 5303017712
13	WCI 5303016973
14	WCI 3016158
15	WCI 5303051076
16	PANEL-FALSE, WHITE
17	BOLT-SHOULDER (2)
19A	318348801 Frigidaire Oven Left Side Door Hinge
19	HINGE ASSY-RH
20	SPRING-OVEN DOOR
22A	RAIL-BASE, LH
22	Rail,base ,RH
23	PAN BOTTOM
24	INSUL WRAP
25	INSUL BACK
26	SUPPORT-REAR OVN (2)
27	SUPPORT-CONDUIT
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	COVER-WIRE
32	BACK MAIN
32	BACK MAIN
34	SHIELD
35	TUBE-VENT
36	WCI 3051511
37	316116400 Frigidaire Oven Light Socket
38	316538904 Frigidaire Oven Lamp Light
39	WCI 3016982
40	PLATE=GROUND STRAP
40A	WCI 5300009126
40B	ANTI-TIP KIT
