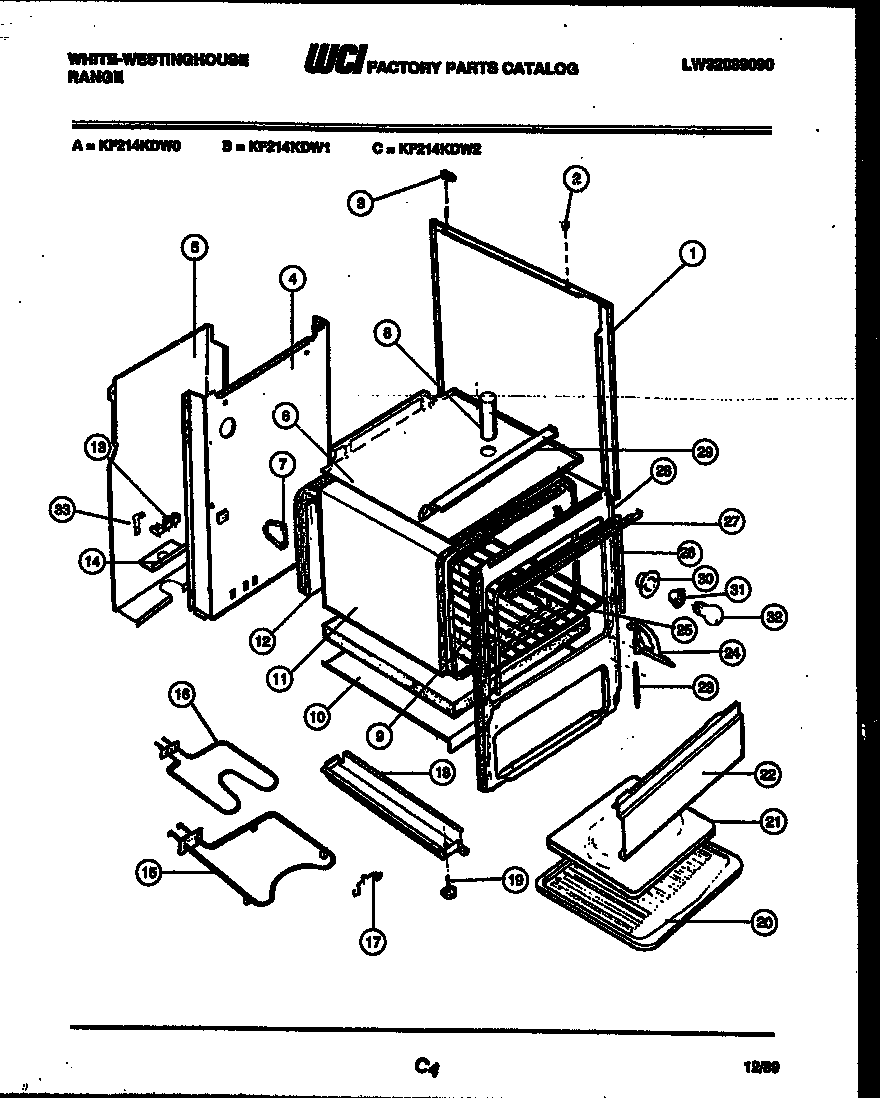

KF214KDD0 03 – BODY PARTS

Products

Position	Product
1	PANEL-BODYSIDE ALMOND (2)
2	GROMMET
3	GROMMET MAIN TOP
4	WCI 3016944
5	COVER-WIRE
6	WCI 3016943
7	SUPPORT-REAR OVN (2)
8	TUBE-VENT
9	WCI 3051087
9	OVEN LINER SIDE RH
9	WCI 3016941
9	WCI 3016985
9	WCI 3016939
10	PAN-INSULATION
11	WCI 3016946
12	WCI 3016947
13	5304409888 Frigidaire Oven Terminal Block with Hardware
14	SUPPORT-CONDULT
15	WCI 3009292
16	WCI 3009293
17	WCI 3009445
18	BASE RAIL
19	WCI 3051080
20	BROILER-PAN
21	WCI 3131021
22	WCI 3016949
23	SPRING DOOR (2)
24	318348801 Frigidaire Oven Left Side Door Hinge
24	WCI 3204670
25	WCI 3016128
26	SEAL – DOOR
27	SUPPORT-CONTROL PANEL
28	WCI 3016942
29	SHIELD SWITCH
30	WCI 3009290
31	316116400 Frigidaire Oven Light Socket
32	316538904 Frigidaire Oven Lamp Light
33	STRAP-GROUND
