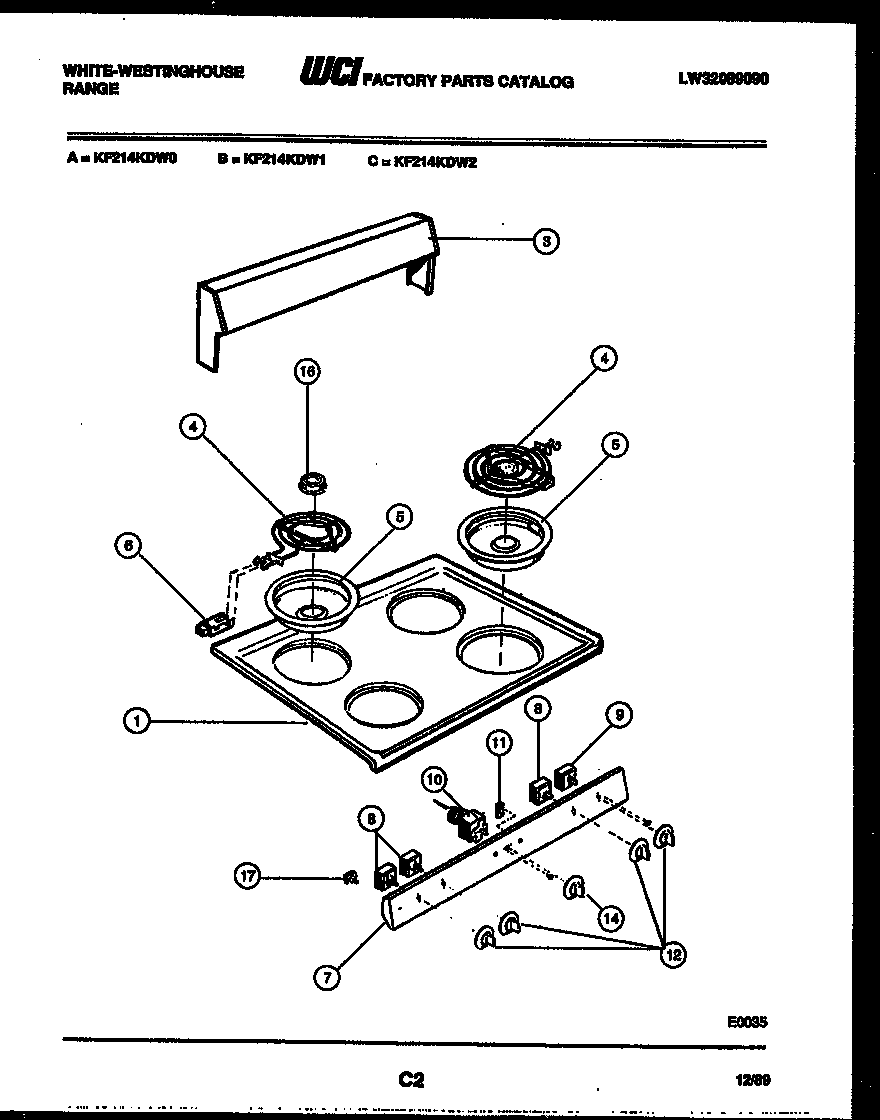

KF214KDW0 02 – COOKTOP PARTS AND BACKGUARD

KF214KDW0 02 – COOKTOP PARTS AND BACKGUARD

Written by

in

KF214KDW0 02 – COOKTOP PARTS AND BACKGUARD

Products

PositionProduct
1MAIN TOP WHITE
3WCI 3016960
3WCI 3016959
4318372210 Frigidaire Oven Range 6" 1250W Surface Element
4316442300 Frigidaire Oven 2100W Coil Element 8
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
65303935058 Frigidaire Oven Burner Receptacle Kit
7WCI 3016983
85303935086 Frigidaire Oven Top Burner Switch Kit
10WCI 3015184
11INDICATOR LIGHT
12KNOB-TOP ELEMENT (4)
14WCI 3051030
16MEDALLION
17WCI 3016982
