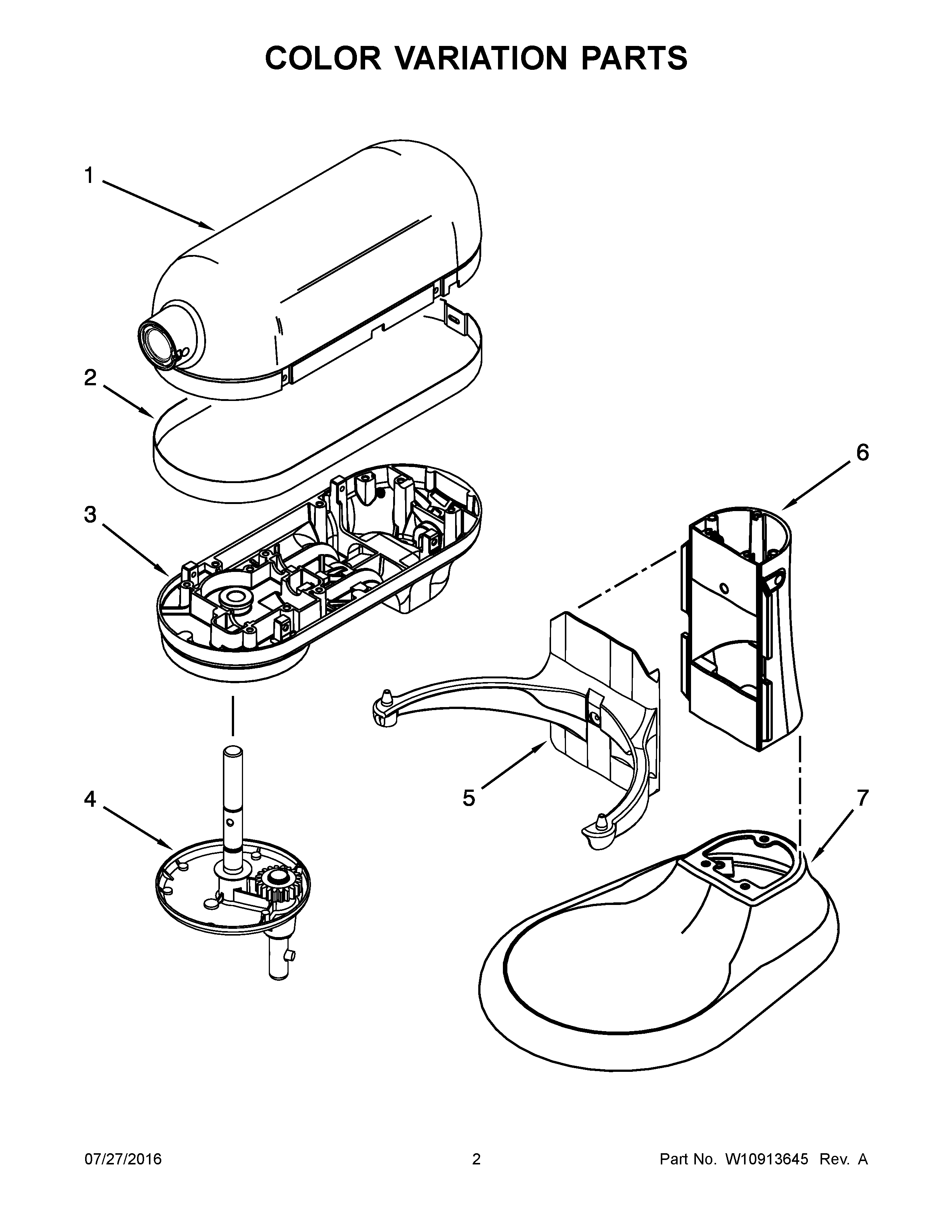

KF26M1QPB5 02 – COLOR VARIATION PARTS

KF26M1QPB5 02 – COLOR VARIATION PARTS

Written by

in

KF26M1QPB5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1E9703433 Whirlpool Housing
1DMOTOR HOUSING (MERLOT)
1G9707981 Whirlpool Housing
1CMOTOR HOUSING (CHAMPAGNE)
1FW10636077 Whirlpool Housing
1IMOTOR HOUSING (BLUEBERRY)
1HMOTOR HOUSING (TOFFEE)
1MOTOR HOUSING (FROSTED AZURE)
1AMOTOR HOUSING (BORDEAUX)
1BWPW10403017 Whirlpool Housing
2TRIM BAND
3DLOWER GEARCASE (GRENADINE)
3ILOWER GEARCASE (BLUEBERRY)
3FW10636082 Whirlpool Gearcase
3HLOWER GEARCASE (TOFFEE)
3CLOWER GEARCASE (CHAMPAGNE)
3BLOWER GEARCASE (BLACK STORM)
3ALOWER GEARCASE (BORDEAUX)
3G9707974 Whirlpool Gearcase
3LOWER GEARCASE (FROSTED AZURE)
3ELower Gearcase (Metallic Chrome)
4GWP9707977 Whirlpool Planetary Gear
4EWP9708175 Whirlpool Planetary Gear
4PLANETARY (FROSTED AZURE)
4APLANETARY (BORDEAUX)
4HPLANETARY (TOFFEE)
4DPLANETARY (GRENADINE)
4CPLANETARY (CHAMPAGNE)
4IPLANETARY (BLUEBERRY)
4BPLANETARY (BLACK STORM)
4FPLANETARY
5E9703397 Whirlpool Support
5BWPW10402999 Whirlpool Support
5CBOWL SUPPORT & PINS (CHAMPAGNE)
5IWPL W10901343
5ABOWL SUPPORT & PINS (BORDEAUX)
5DBOWL SUPPORT AND PINS (MERLOT)
5BOWL SUPPORT & PINS (FROSTED AZURE)
5FW10636085 Whirlpool Support
5HWPL W10901324
5G9707970 Whirlpool Support
6E9703349 Whirlpool Column
6GWPL 9707967
6BWPW10402993 Whirlpool Column
6DCOLUMN AND PINS (MERLOT)
6WPL W10901238
6AWPL W10901270
6CWPL W10901303
6FW10636087 Whirlpool Column
6HWPL W10901328
6IWPL W10901345
7E9703346 Whirlpool Base
7HWPL W10901326
7FW10636089 Whirlpool Base Assembly
7BWPW10402987 Whirlpool Base
7CWPL W10901302
7DWPL W10602446
7G9707964 Whirlpool Base
7AWPL W10901269
7WPL W10901239
7IWPL W10901344
