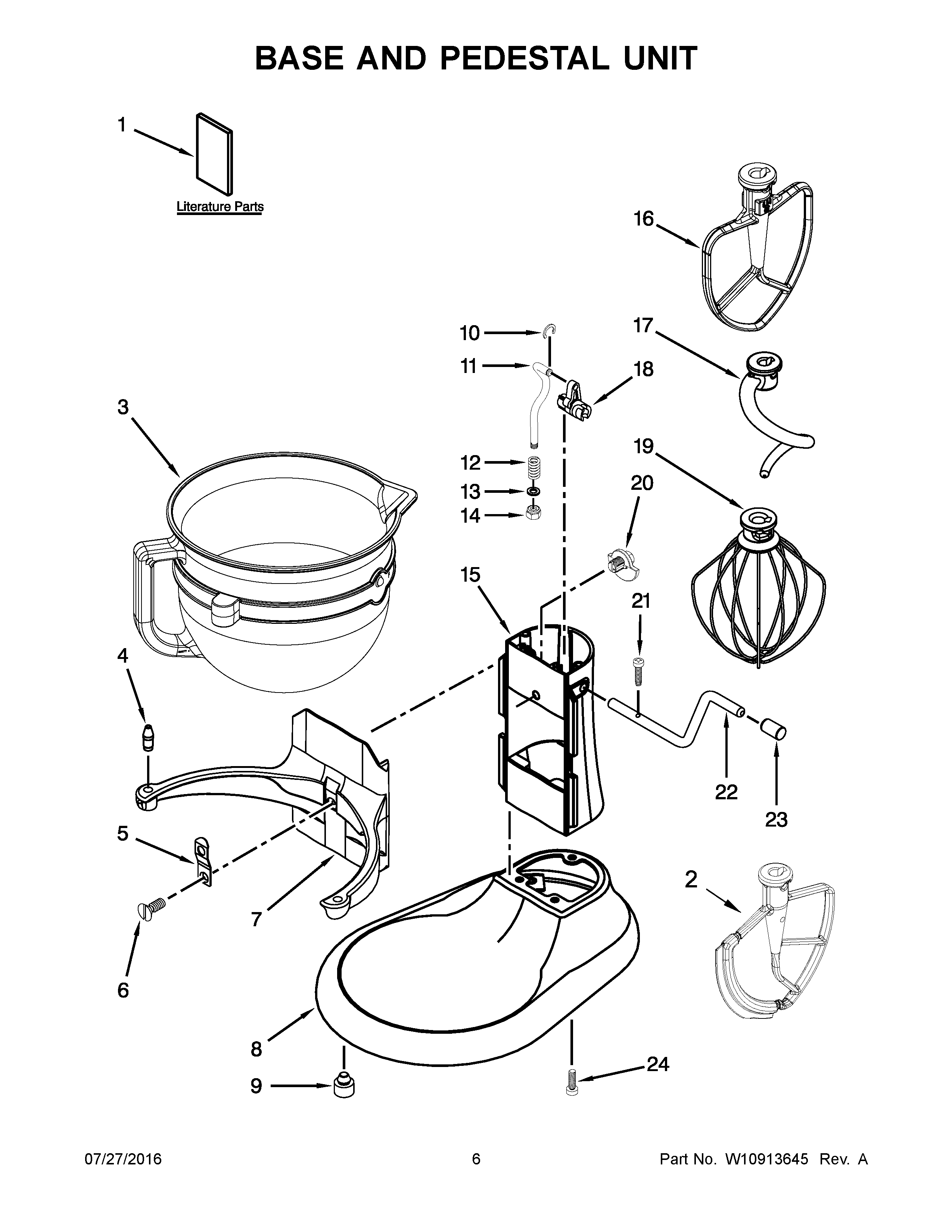

KF26M1QUB5 04 – BASE AND PEDESTAL UNIT

KF26M1QUB5 04 – BASE AND PEDESTAL UNIT

Written by

in

KF26M1QUB5 04 – BASE AND PEDESTAL UNIT

Products

PositionProduct
1USE & CARE GUIDE
2BEATER, FLEX EDGE
3BOWL, GLASS (6 QUART)
4WP240185 Whirlpool Bowl Retaining Pin
5WPW10504114 Whirlpool Clip
6W10861883 Whirlpool Screw
9WP9708649 Whirlpool Foot
10WP9703307 Whirlpool Ring-C Assembly
11W11376364 Whirlpool Lift Rod
124159622 Whirlpool PP Spring
13Washer
148533907 Whirlpool Dishwasher Nut
15CABINET (NOT A SERVICEABLE PART)
16W10672615 Whirlpool Mixer Beater
17W10909092 Whirlpool Dough Hook
18WP9706885 Whirlpool Lift Arm Assembly
19WPW10552543 Whirlpool Wire Whip
20Cam, Adjusting
21WP3400814 Whirlpool Screw
22W11376371 Whirlpool Handle Assembly
23W11501449 Whirlpool Handle Assembly
24W10913677 Whirlpool Screw
