KF26M22CA5 02 – COLOR VARIATION PARTS

KF26M22CA5 02 – COLOR VARIATION PARTS

Written by

in

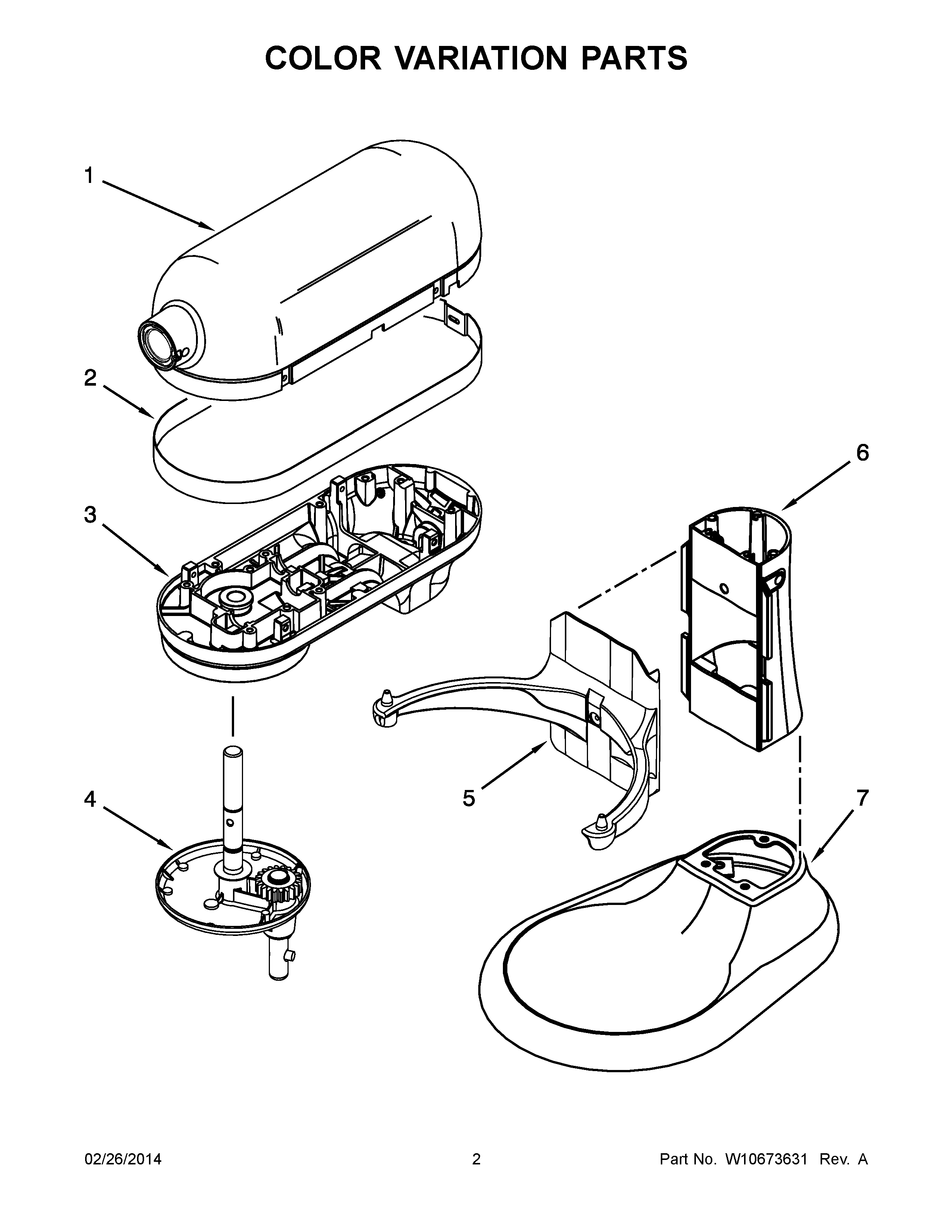

KF26M22CA5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1WPW10403016 Whirlpool Housing
19705296 Whirlpool Housing
1W10520271 Whirlpool Housing
2W10684315 Whirlpool Trim Band
39706311 Whirlpool Gearcase
3LOWER GEARCASE (SUGAR PEARL)
3LOWER GEARCASE (CANDY APPLE)
4W10681058 Whirlpool Planetary Gear
4WP9708176 Whirlpool Planetary Mixer
4PLANETARY (SUGAR PEARL)
59705356 Whirlpool Support
5WPW10402998 Whirlpool Support
5W10520248 Whirlpool Support Assembly
6WPL W10520205
6WPW10402992 Whirlpool Column Assembly
69705320 Whirlpool Column
7WPL W10520258
7WPW10402986 Whirlpool Base Assembly
79705344 Whirlpool Base
