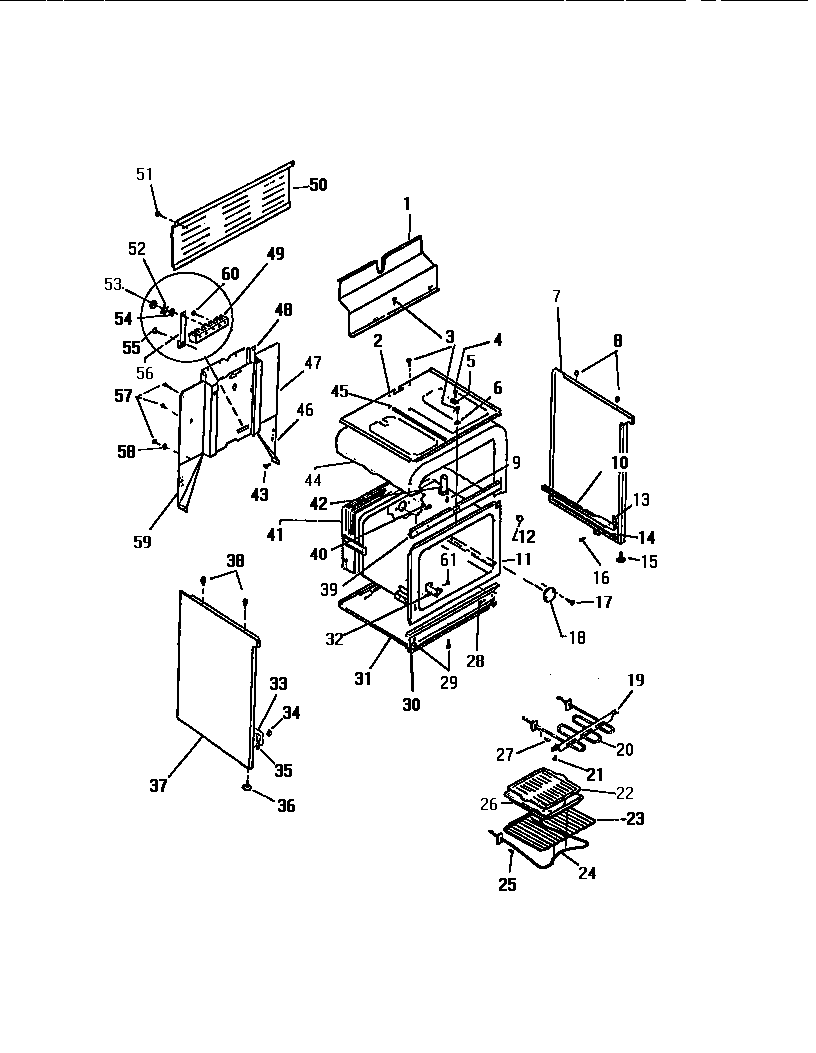

KF300GDD1 05 – BODY, SIDE PANELS

Products

Position	Product
1	WCI K5032101
2	WCI K5025802
4	WCI K1164550
5	RETAINER
6	WASHER, PADDED
7	END PANEL, RH, ALMOND
9	SCREW
10	RAIL, DWR., RH
11	WCI K1325537
12	PLUG-BUTTON 3/4``
16	SCREW
18	WCI K1325524
19	HANGER
20	5303051516 Frigidaire Broil Element
22	WCI K1317972
23	RACK (2)
24	5303051519 Frigidaire Oven 2600W Bake Element
26	WCI K1317973
30	CHANNEL, OV. SUPT.
31	WCI K1315107
32	BRACKET THERM. BULB
33	RAIL, DWR, LH
34	GUIDE
35	SPACER, RAIL
36	LEG
37	END PANEL, LH, ALMOND
38	BUMPER
39	WCI K1325472
41	INSULATION, BACK
42	VENT TUBE
44	INSULATION, WRAP
45	ROD
46	WCI K1325113
47	WCI K5137902
48	WCI K1315110
49	TERMINAL BLOCK
50	COVER-WIRE
52	WCI Q500411
53	WCI Q401002
54	WASHER (6)
56	STRAP-GROUND
58	WCI 0410505
59	WCI K1325114
60	SCREW
61	08002868 Frigidaire 0 Screw Assembly
