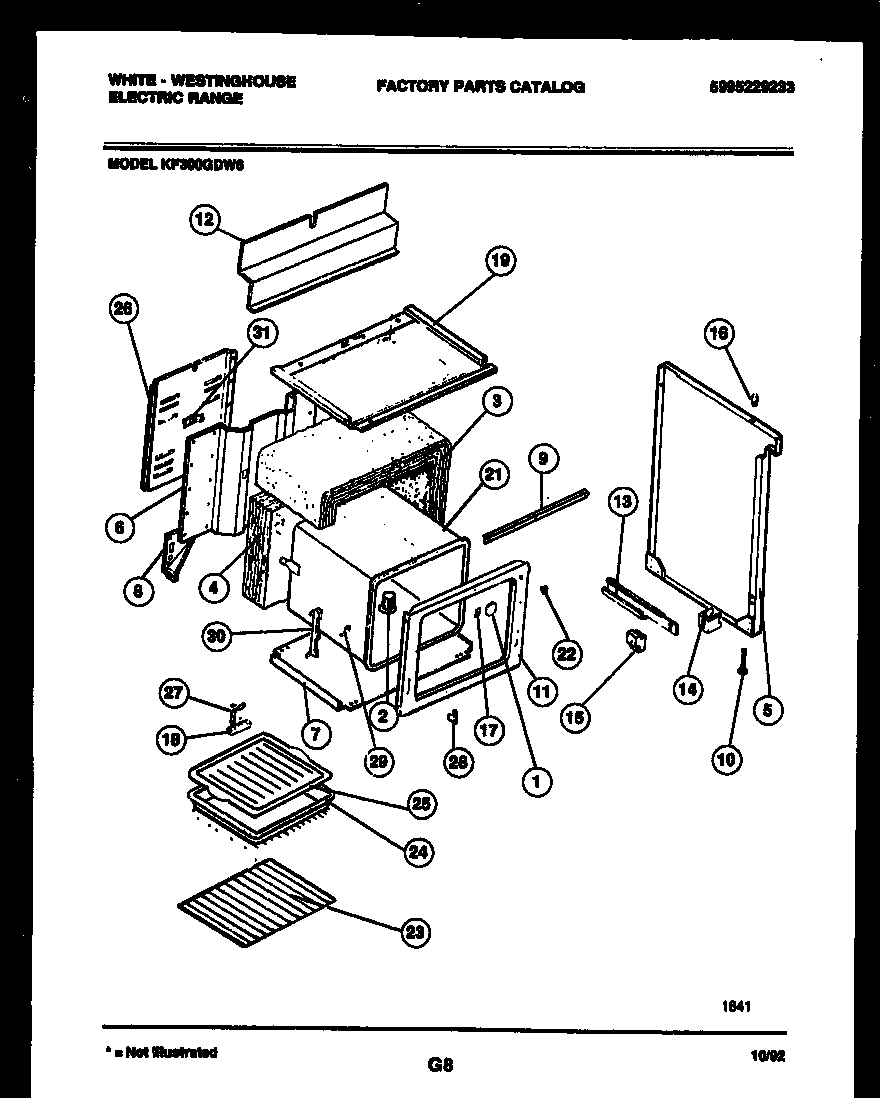

KF300GDD6 06 – BODY PARTS

Products

PositionProduct
*70177WIRING DIAGRAM (NOT FOR PURCHASE)
*70177ANTI-TIP KIT, (NON-ILLUSTRATED)
1WCI 3017576
2WCI 08012541
3INSULATION – OVEN WRAP
4WCI 5303274967
5ASIDE PANEL LH-ALMD
5SIDE PANEL RH-ALMD
6PANEL-BACK
7WCI 3206275
8AWCI 3017482
8WCI 3017481
9WCI 5303207391
10SCREW-LEVELING (4)
11FRONT – OVEN
12WCI 3206095
13ARAIL, DRAWER LH
13WCI 5308015746
14SPACER, DRAWER RAIL (2)
15GUIDE-DRAWER FRNT (2)
16BUMPER, COOKTOP (4)
17WCI 3202082
185304409888 Frigidaire Oven Terminal Block with Hardware
19PANEL – SUBTOP
21OVEN LINER
22BUTTON-PLUG
23316067902 Frigidaire Oven Rack
24WCI 5303292688
25WCI 3205234
26WIRE, COVER
27PLATE=GROUND STRAP
28WCI 3019063
29WCI 3201632
30A5303284616 Frigidaire Range Bulb Clip Thermostat
30WCI 3201631
31WCI 3016281
