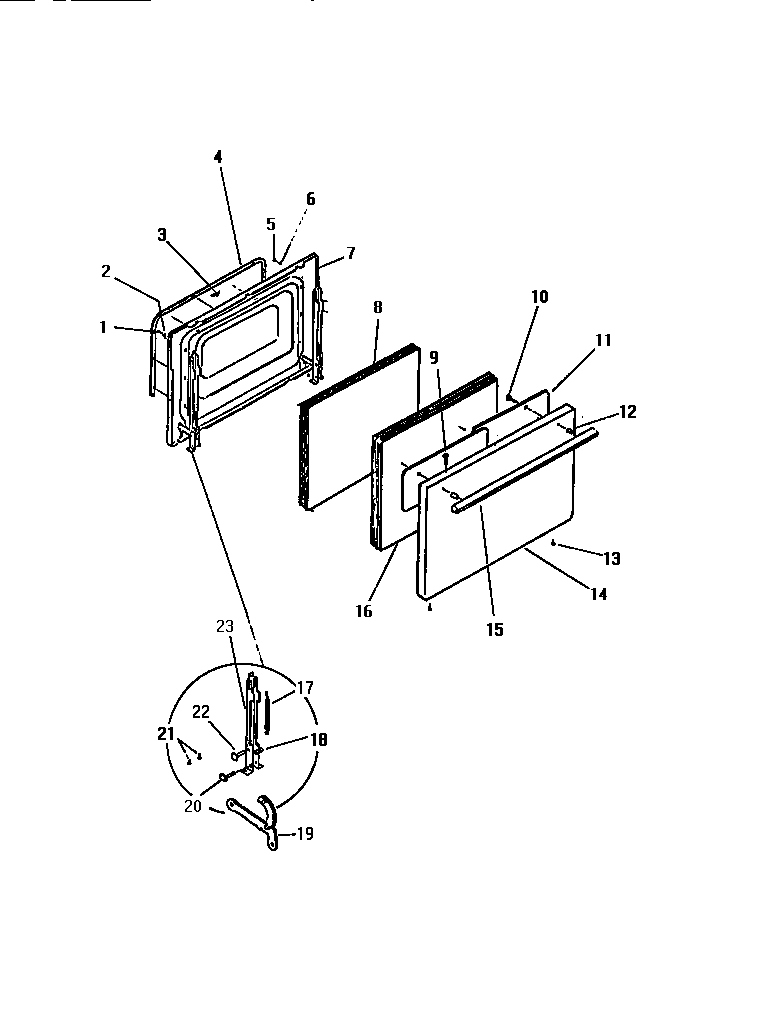

KF300GDF1 04 – DOOR

Written by

KF300GDF1 04 – DOOR

Products

Position	Product
3	WCI K1309666
4	GASKET (WITH CLIPS)
6	WASHER, PADDED
7	WCI K1317740
8	WCI K1312279
10	WCI K5104201
11	WCI K5109202
12	SPACER (2)
14	WCI K1317931
15	HANDLE – DRAWER (CHROME)
16	INSULATION
17	SPRING
18	ROLLER PACKAGE-OVEN DOOR (2)
19	ARM ASSY.
20	AXLE
21	WCI K1164550
22	RIVET
23	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
