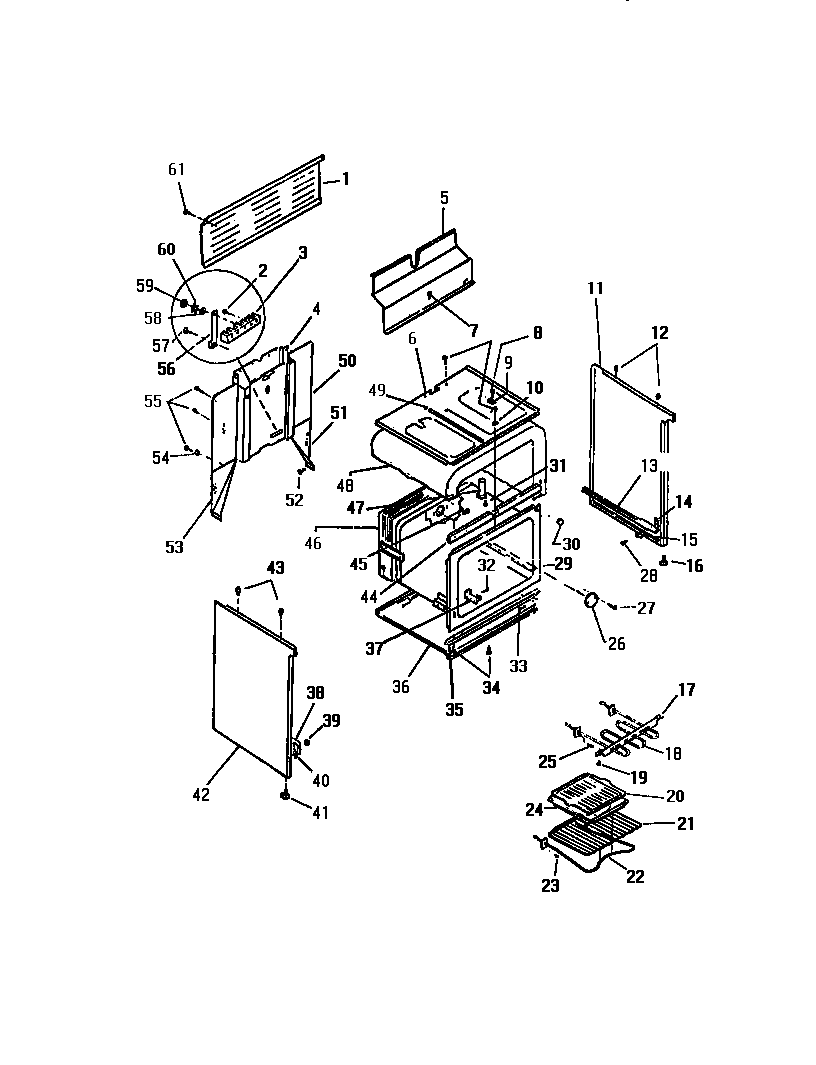

KF300GDF2 05 – BODY, SIDE PANELSadmin2025-04-26T10:02:56+00:00KF300GDF2 05 – BODY, SIDE PANELS
Products
| Position | Product |
|---|
| 1 | COVER-WIRE |
| 3 | TERMINAL BLOCK |
| 4 | COVER, WIRE |
| 5 | WCI K5029503 |
| 6 | WCI K5025802 |
| 8 | WCI K1164550 |
| 9 | RETAINER |
| 10 | WASHER, PADDED |
| 11 | WCI K5024605 |
| 13 | RAIL, DWR., RH |
| 17 | HANGER |
| 18 | 5303051516 Frigidaire Broil Element |
| 20 | WCI K1317972 |
| 21 | RACK (2) |
| 22 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 24 | WCI K1317973 |
| 26 | WCI K1325524 |
| 28 | SCREW |
| 29 | WCI K1325537 |
| 30 | PLUG-BUTTON 3/4`` |
| 31 | SCREW |
| 32 | 08002868 Frigidaire 0 Screw Assembly |
| 33 | SCREW |
| 35 | CHANNEL, OV. SUPT. |
| 36 | PANEL, BTM |
| 37 | BRACKET THERM. BULB |
| 38 | RAIL, DWR, LH |
| 39 | GUIDE |
| 40 | SPACER, RAIL |
| 41 | LEG |
| 42 | WCI K5024606 |
| 43 | BUMPER |
| 44 | WCI K1325472 |
| 46 | INSULATION, BACK |
| 47 | VENT TUBE |
| 48 | INSULATION, WRAP |
| 49 | ROD |
| 50 | BACK |
| 51 | GUSSET, RH |
| 53 | GUSSET REAR, LH |
| 54 | WCI Q410505 |
| 56 | STRAP-GROUND |
| 58 | WASHER (6) |
| 59 | WCI Q401002 |
| 60 | WCI Q500411 |
